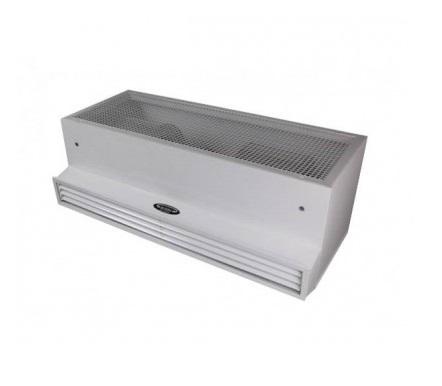

Industrial air curtains IM-2007-HW Mitsuei
Mitsuei
Iran
In general, the MITSUEII curtain air curtain installed at the top of the door (from the inside) creates a vertically controlled compressed air from top to bottom and creates uniform aeration. It is recommended to use the Mitsui IM-HW series air curtain for the long doors of factories or entrances where insect control is more important and to prevent heat exchange.
Mitsui Industrial Air Curtain Model IM-2007-HW with a length of 70 cm and a heating power of 15 KW, is a series of Mitsui industrial air curtains that are suitable for installation in office buildings, shops, shopping centers, hotels, banks, hospitals. And so on.
Mitsui Industrial Air Curtain Model IM-2007-HW with a length of 70 cm and a heating power of 15 KW, is a series of Mitsui industrial air curtains that are suitable for installation in office buildings, shops, shopping centers, hotels, banks, hospitals. And so on.
You can also make a price as a seller
Request a price to negotiate and get a better offer
Suppliers
| Suppliers | Expiration date | Price (Toman) | Minimum order (MOQ) | City | Phone number |
|---|---|---|---|---|---|
The price is not recorded | |||||
similar products
Industrial air curtains IM-2007-HW Mitsuei
Attributes :
1. The Mitsui IM-HW series air curtain is produced in two sizes of 70 and 120 cm.2. The width of the door opening will be covered with a combination of two high sizes and effective height.3. If there is a need for a warm industrial industrial curtain, this model will be equipped with a hot water coil or steam or electric element.4. The body of the devices is made of galvanized white electrostatic paint.5. IM-HW series devices have the ability to adjust the air outlet with Air Foil blades.6. The device is equipped with IP 54 Class F electric motor.7. The Mitsui IM-HW series air curtain requires a metal coil to install.8. This device needs a three-phase electrical protection board with a constant speed. According to the order, it is possible to present with a variable speed panel (inverter).
Product Specifications
Dimensions (cm)
70*57*55
Weight (kg)
60
Engine speed (rpm)
1400
Coil dimensions (cm)
530*580
سرعت هوا (m/s)
slow motion
16
Round speed
28
ارتفاع نصب عمودی (cm)
Energy exchange
440
Insect input
340
