Unit heater DUH-16 Datiskar

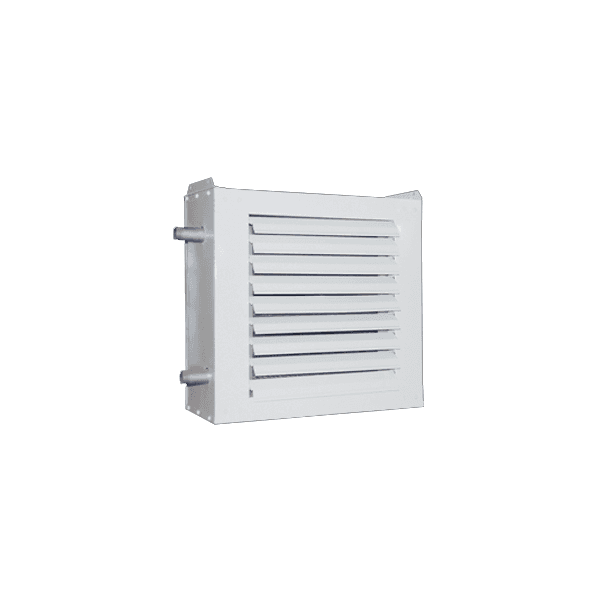

The Datis Kar steam heater unit, with a single-speed motor, consists of the following parts: A number of coils with finned tubes in which steam is transferred as a carrier of thermal energy, depending on the type of heater unit, the heater unit coil may be flat, cubic, round or circular. A propeller or fan that is responsible for passing air through the coil and circulating it inside the heated space. Depending on the capacity and aeration pressure, the fan may be a locust or centrifuge. Air directional blades that can direct the exhaust air from the steam heater unit to different parts of the heated area. A cabinet or enclosure in which the impeller and coil are mounted, as well as the air directional blades. Datis Kar steam heater units have a steel body and ST37 type and are of suitable thickness along with electrostatic powder coating. The heating values ​​provided by the Datis steam heater unit are based on 30PSI or (2 times) steam pressure, which will be less than 5PSI and 15PSI heating values.The Datis Steam Single Range Heat Unit has a copper or Manisman coil with a diameter of 8.5 inches and a flat fin type (FIN PLATE) with a density of 8 feet per inch. 6 bars become hydrostatic. The electric motors used in the super-single-phase and industrial heater units are. Datis Kar steam heater units have a 2-year warranty.
