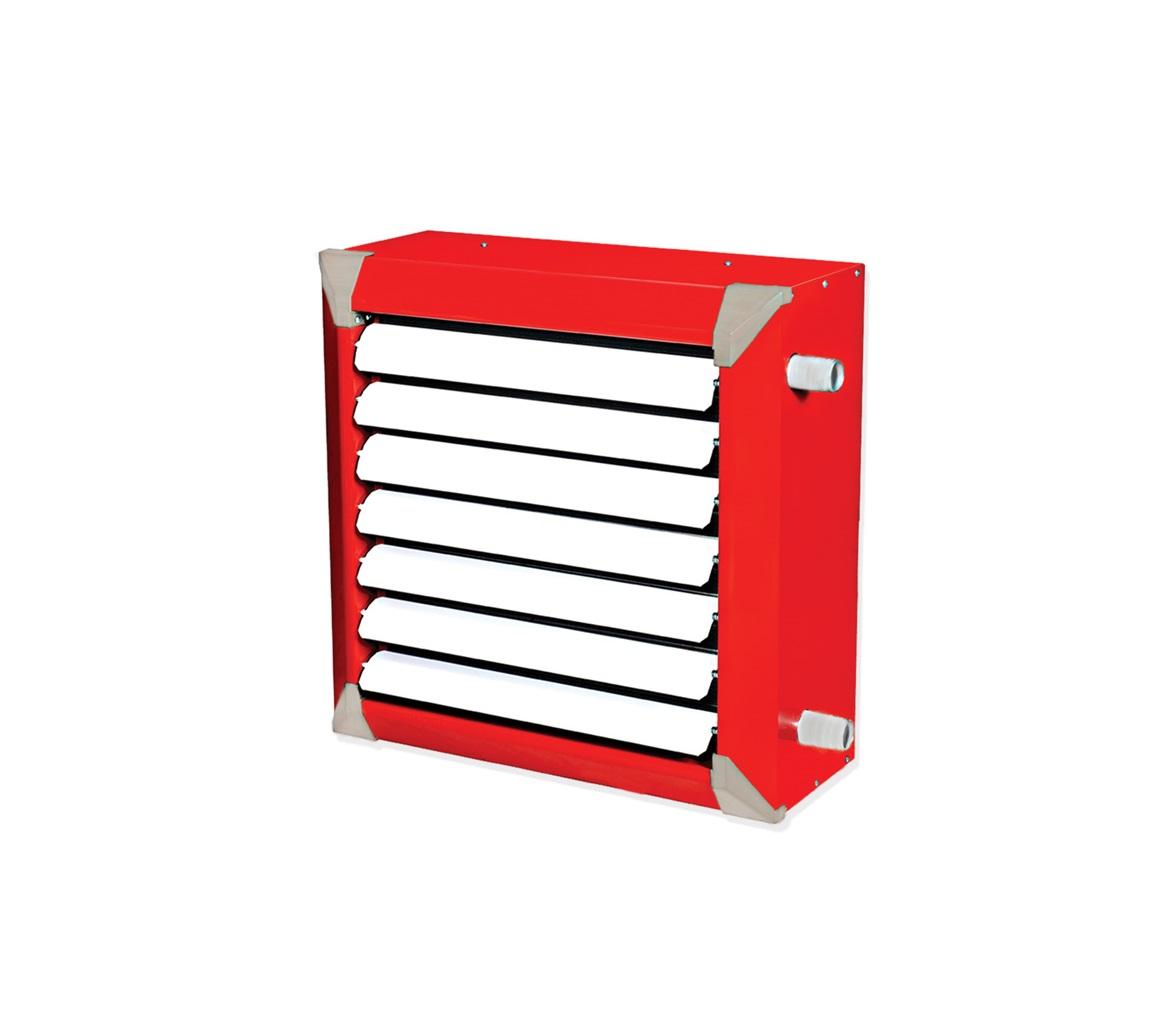

Unit heater SAUS-50 Sabafarinco

Sabafarinco
Iran

The sabafarin SAUS-50 wall-mounted steam heater unit is a steam heater unit model with a heat capacity of 71,000 to 120,000 BTU / hr, which is produced and supplied by Sabafarin Company in accordance with the latest standards.
The SAUS-50 Sabafarin steam heater unit is suitable for heating industrial halls, sports venues, warehouses, etc.
Due to the fact that the latest technologies have been used in the construction of Sabafarin steam heater unit coil, by adding a row of pipes in these coils, the sabafarin SAUS-50 steam heater unit unit can also be used for cooling purposes.
You can also make a price as a seller
Request a price to negotiate and get a better offer

Suppliers

SuppliersExpiration datePrice (Toman)Minimum order (MOQ)CityPhone number
The price is not recorded

similar products

Unit heater SAUS-50 Sabafarinco

Attributes : After production, Sabafrin steam heater unit coils are subjected to 30 times hydraulic testing under pressure.The body of the Sabafrin steam heater unit is made of steel (ST14) and is made using special molds and fixtures.At the customer's request, stainless steel tubes are also used to make the SAUS-50 Sabafrin steam heater unit coil.Sabafarin heaters' units have a very high thermal efficiency, so that by buying them, you can save a lot of energy.The heating values ​​of the Sabafarin steam heater unit are considered in the case that the inlet steam pressure of PSI 5 or PSI 15 and the inlet air temperature is 60 degrees Fahrenheit.Due to the low thermal level and incomplete connection of spiral finned pipes, these pipes are not used in any way in the construction of SAF-50 SAUS-50 steam heater unit coil.It has high thermal efficiency as well as beauty and elegance, which make the sabafarin SAUS-50 steam heater unit different from similar products on the market.The SAUS-50 Sabafarin Steam Heater Unit has adjustable dampers with a special steel profile. These dampers can be adjusted so that hot air can be easily directed to the required location.Coil in the Sabafrin Steam Heater Unit of 8.5-inch-diameter copper pipe with a wall thickness of 1mm or 8.5-inch seamless carbon steel pipe with a wall thickness of 1.5mm and made of ASTM-A-179 material and Fin Plate Aluminum is made.In places where high throws are required, special dampers with adjustable levers (in the form of Air Foil) can usually be used. Special dump trucks double the number of regular dump trucks and increase the thermal efficiency of the heater unit.The sabafarin SAUS-50 steam heater unit electric motors are two-phase single-phase (900 and 1400 rpm) manufactured by Motogen factory, which has a high quality, but according to the order, three-phase electric motors or explosion-proof electric motors (in the environment). Which are likely to contain explosive gases.The method of painting the body of the Sabafrin steam heater unit is that the body parts in an automatic line, after passing through degreasing, phosphating and rinsing, pass through the dryer and dry, and then with powder paint ( The electrostatic brush is covered and eventually the piece goes into a 200. C oven for baking.

Product Specifications

Aeration volume (CFM)
1000
Engine speed (RPM)
900
Inlet pipe diameter (In)
1 1/4 ″
Dimensions of the device (cm)
53.5 * 53.5 * 26
