Axial fan HIT-1250 NP 1,5 KW S&P

S&P
Iran

HIT-1250 axial fans have high aeration, low power consumption and low noise. The use of high quality raw materials and modern devices, as well as the type of electro-motor selected, has made this type of ventilator capable of long-term operation in adverse weather conditions such as humid environments, greenhouses, poultry halls, industrial halls, warehouses, etc. . Have.

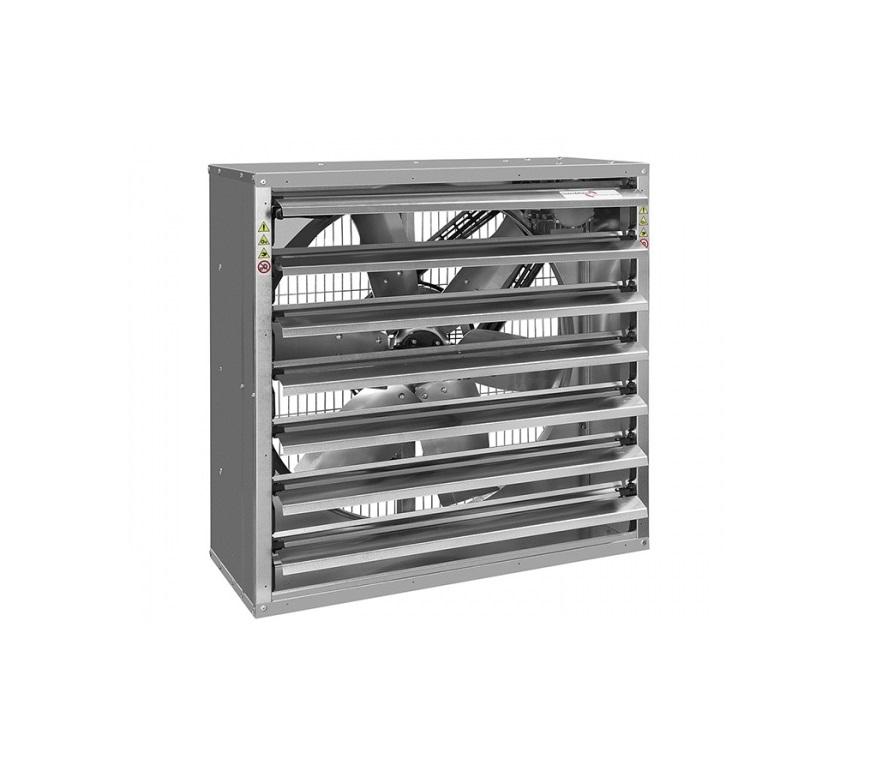

These types of fans have a damper, which when the fan is not working, the damper is completely closed and separates the indoor environment from the outside space, thus preventing the entry of vermin and heat exchange.
You can also make a price as a seller
Request a price to negotiate and get a better offer

Suppliers

SuppliersExpiration datePrice (Toman)Minimum order (MOQ)CityPhone number
The price is not recorded

Axial fan HIT-1250 NP 1,5 KW S&P

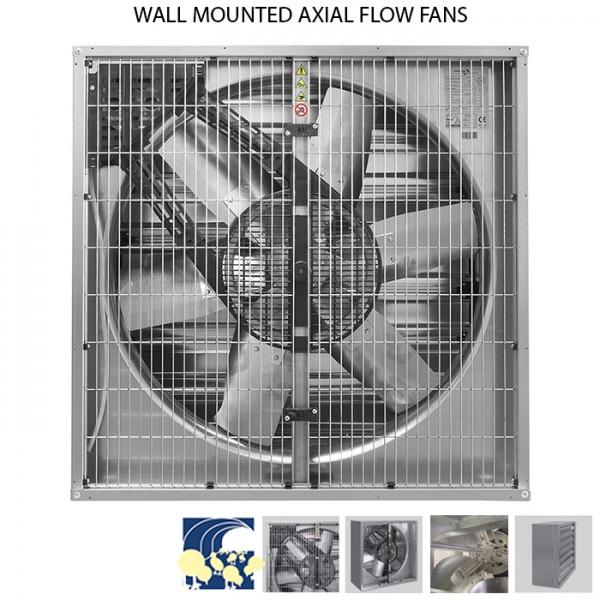

The wide range of products of the Spanish company S&P also includes greenhouse and poultry fans. In this section, we point out some of its important and practical features. HIT-1250 axial fans have high aeration, low energy consumption and low noise. Are. The use of high quality raw materials and modern devices, as well as the type of electric motor selected, has made this type of ventilator capable of long-term operation in adverse weather conditions such as humid environments, greenhouses, poultry halls, industrial halls, warehouses, etc. . Have. Attributes : The body is made of galvanized steel sheet, which in addition to its beautiful appearance, is extremely resistant to rust and corrosion.The propellers are of the 6-blade type of aluminum plum with a special alloy, which are balanced with advanced machines to prevent vibration.Foils are alumina castings with special alloys.The dampers are mechanically closed by the armOn the front of the fan, a protective galvanized steel mesh is installed, as well as a PVC protective cover for further protection of the foil and straps.

Product Specifications

Application
Poultry farms / greenhouses / agricultural and industrial uses
Voltage (v)
230
Power (w)
1500
Consumption current (A)
3.66
Number of engine bridges
4
Thermal class
F
Degree of protection (IP)
IP54
Aeration power (m3 / h)
40700
Maximum pressure (PA)
260
Sound (db)
69
Connect the motor to the impeller
Foley and straps
Engine Speed ​​(RPM)
1400
Damper type
Eccentricity
Butterfly dimensions (cm)
120
Material of butterfly
Galvanized steel
Frame dimensions (cm)
137.5 * 137.5
Frame material (body)
Galvanized steel
Weight (Kg)
92
