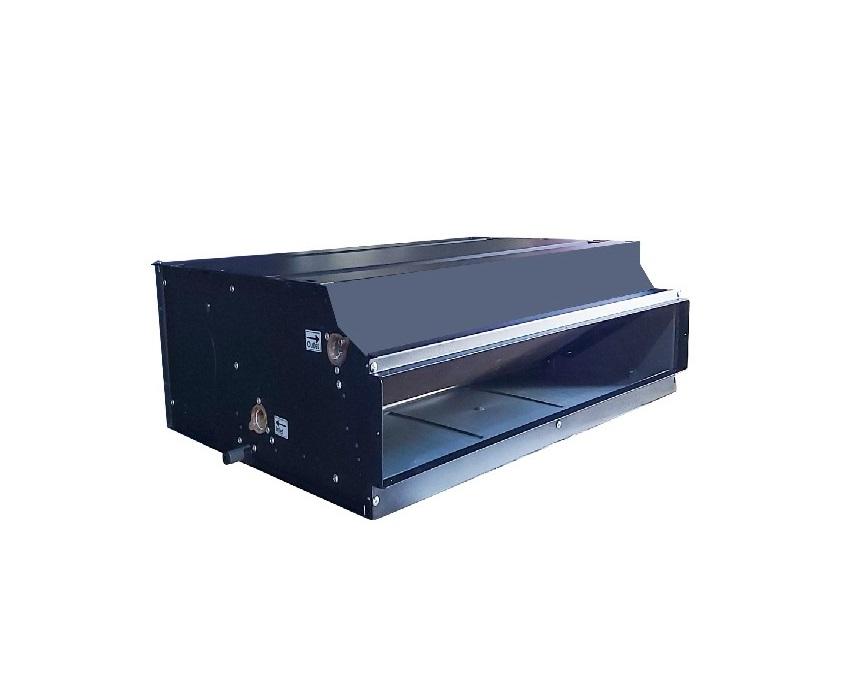

Ceiling fan coil TS-CF-300 Taksaral

Taksaral
Iran

Saral built-in ceiling fan coils are produced in capacities of 300 CFM 400, CFM and 600 CFM. Fans and electric motors are made of metal and abs, which have a minimum of sound decibels, and all electric motors installed on the device are of three-speed type (electron). The entire exterior and interior of the Saral built-in ceiling fan coil is made of high quality galvanized sheet with a thickness of 1 mm, which is connected to each other by screw and rivet connections. Also, the coils made by this company have 3 rows of horizontal pipes and 8 vertical rows with a diameter of 3.8 inches, and the fin density in these coils is 12 inches with a thickness of 150 microns and can be implemented in a simple and sinusoidal manner. . All of these coils have been tested in the final stage with a pressure of 8 atmospheres, which can be used in buildings up to 20 floors. In general, built-in ceiling fan coils, also called duct fan coils or duct fan coils, have built-in components inside a part of the roof that is normally located at the entrance of each room or hall.
You can also make a price as a seller
Request a price to negotiate and get a better offer

Suppliers

SuppliersExpiration datePrice (Toman)Minimum order (MOQ)CityPhone number
The price is not recorded

similar products

Ceiling fan coil TS-CF-300 Taksaral

Attributes :

It has a metal and fabric filter (according to the customer's order) and easy to wash and replace
It has a density of 12 fins per square inch and can be made with fin (simple, sinusoidal).
Equipped with a three-row coil with a copper pipe diameter of 3.8 inches and a thickness of 0.5
Equipped with ventilation valve (lever) for ease of ventilation
It has a three-speed electric motor and a very low sound level
Ability to install a return valve at the bottom and back of the device
Has a variety of construction with metal fans and ABS
Ability to make cobble with simple fin and bluff
It has a galvanized sheet
Working pressure 8 atmospheres

Product Specifications

Aeration (CFM)
300 - 253 - 200
Maximum cooling power (BTU / hr)
12200
Maximum heating power (BTU / hr)
15800
Sound intensity (dB)
40/35/32
Dimensions (mm)
550 * 230 * 650
Water resistance (kPa)
5
Body category dimensions (mm)
700 × 700 × 330
Body weight (kg)
19.5
Inlet / outlet pipe size (inch)
(19.05) 3.4
Water flow capacity (GPM)
2.8
