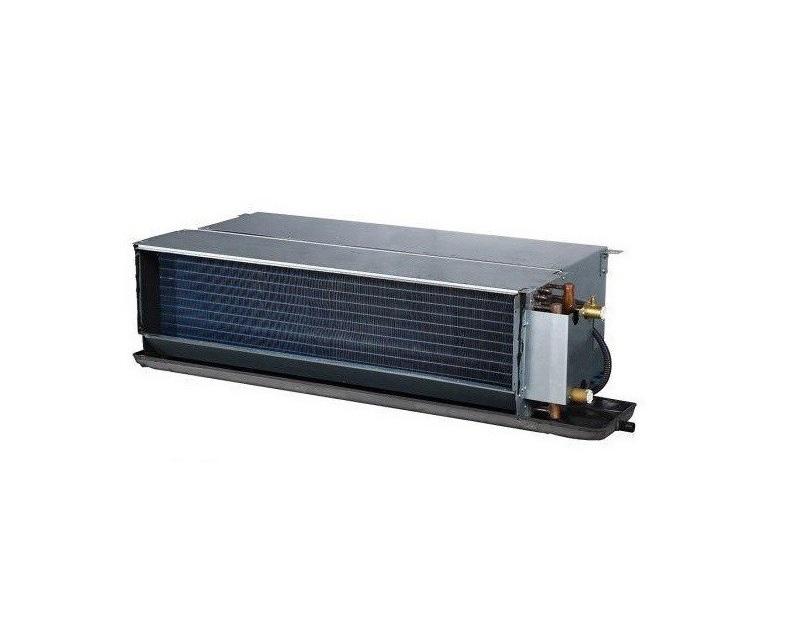

Ceiling fan coil GFU-LC600G30 G-Plus

G-Plus
Iran

The GFU-LC600G30 low pressure built-in ceiling fan coil is one of the newest fan coil models produced by the famous company Goldiran under the GPLUS brand and is offered to domestic markets and Middle Eastern countries.

Goldiran Fan manufactures GPlus built-in ceiling coils based on modern world standards and the use of advanced machinery and quality components in a variety of low static pressures and high static pressures in aeration capacities of 200 to 2000 cubic meters per hour.

The GFU-LC600G30 built-in ceiling fan coil with 600CFM aeration capacity with a static pressure of 30 Pascal is part of the GPlus low pressure built-in ceiling fan coil series, which can be installed on low-height false ceilings with a compact design.
You can also make a price as a seller
Request a price to negotiate and get a better offer

Suppliers

SuppliersExpiration datePrice (Toman)Minimum order (MOQ)CityPhone number
The price is not recorded

similar products

Ceiling fan coil GFU-LC600G30 G-Plus

Attributes : It has a three-row coil with a tube of "3.3" with a thickness of 0.35 mm and an aluminum flat bed with a thickness of 120 micrometers.All GPlus built-in ceiling fan coils are made of galvanized sheet with a minimum sheet thickness of 0.8 mm.The drainage tray in these built-in GPlus built-in ceiling fan coils is made of hard galvanized sheet.It has a forged brass PN16 brass input collector "G3 / 4Flexible sponge polyurethane insulation to prevent dew formation on cold parts and sound absorption during operationPolymer filter with very low pressure drop and desirable and washable filtering power and very easy to moveFully balanced and unformed centrifugal fan, integrated with long-lasting galvanized sheetEquipped with drain valve and proper ventilation valve

Product Specifications

Aeration (CFM)
600
Sound intensity (dB)
41/38/32
Engine power (w)
42
Dimensions (mm)
244 * 527 * 1275
Number of fans
2
Body weight (kg)
29.4
Inlet / outlet pipe size (inch)
04-Mar
Drain pipe size (inch)
04-Mar
External static pressure (Pa)
30
Number of coil rows
3
For area (m2)
40
Type of fan
centrifuge

Capacity (H / M / L) (kw)
7/6 / 4.7
Water flow (L / h)
1181
Water pressure drop (Kpa)
45.3

Capacity (H / M / L) (kw)
11.1 / 9 / 6.7
Water flow (L / h)
954
Water pressure drop (Kpa)
24.8
