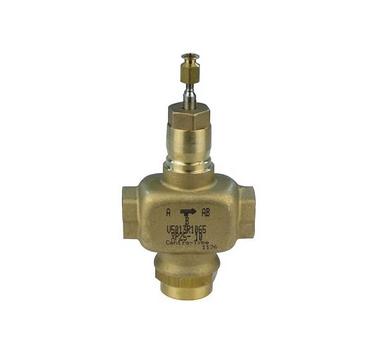

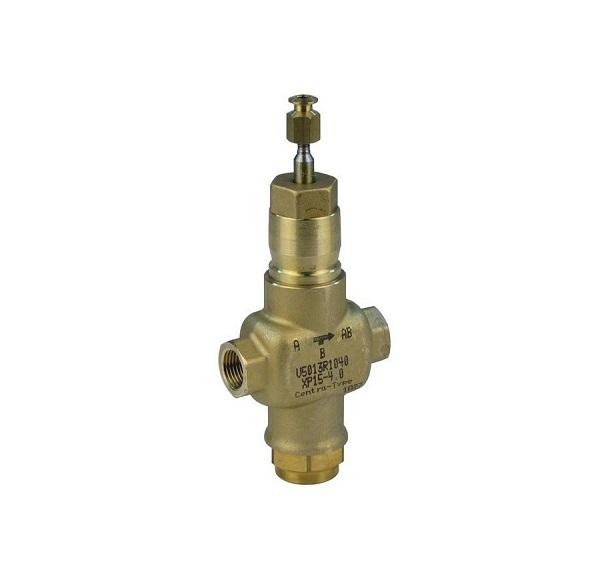

haniwall three-way motor valve model V5013R1040 is a linear three-way valve model with brass mixer function with 1/2 inch gear connections and 16 bar work pressure (PN16) with suitable electric drive to control flow. Hot and cold water is used in air conditioning systems such as chillers and heating systems.
haniwall Motorized Three-Way Rice Motor Valve 1/2 has a mixing function so that the valve output is a combination of two different inputs (A and B).
You can also make a price as a seller
Request a price to negotiate and get a better offer
Attributes :
Milk type: three-way mixMilk material: brassPlug material: brassStem material (shaft): stainless steelConnection type: gearMoving course: 20mmLeakage rate less than 0.05%Current coefficient: 4KvClosing pressure with a 1600 kPa 600 Nm motorThis model does not work with the 1800 Nm engine.haniwall three-way motor valve three-way valve temperature at 1600 kPa from 2 to 120 C and at 1490 kPa from 120 to 170 CThe maximum temperature difference between use with hot and cold water is 60 KelvinApplication of haniwall Rice three-way motor valve "1/2 in heating, air conditioning and hot and cold water systemsDimensions 83 * 211.5 mm (the bar is at the bottom)Dimensions 83 * 255.5 mm (rod is in top position)haniwall engines used with Haniol 1/2 brass three-way motor valve: ML6420 - ML6425 - ML7420 - ML7425 - ML6421 - M7421 - ML6984 - ML7984
