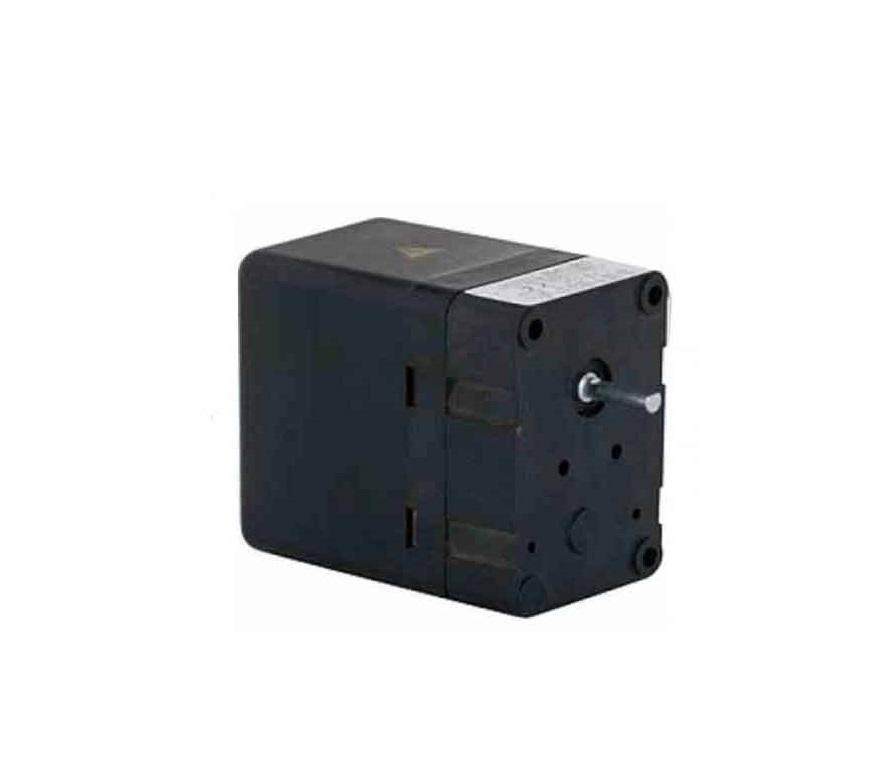

Damper motor LKS 120 04 Honeywell
Honeywell
Iran
Haniol damper motor - LX 120 center is one of the most widely used damper motors and is one of the most popular models in the market in terms of production quality and price.
In general, a damper is a type of flow blocker that is responsible for opening and closing or adjusting and controlling the flow passing through any path, such as inside the duct and chimney.
For example, a damper is used to cut off the flow of incoming air to a room or to adjust the amount of channel air flow to each room to adjust the room temperature, and is actually used as a means of air conditioning.
The dampers operate in both manual and automatic modes (servo motors). In manual dampers, control is done by hand and external levers, and in automatic dampers, they are performed by the servo motor damper motor.
For example, when starting any heating device, make sure that the air damper is open, because closing the damper is extremely dangerous and can cause bites or fires.
In general, a damper is a type of flow blocker that is responsible for opening and closing or adjusting and controlling the flow passing through any path, such as inside the duct and chimney.
For example, a damper is used to cut off the flow of incoming air to a room or to adjust the amount of channel air flow to each room to adjust the room temperature, and is actually used as a means of air conditioning.
The dampers operate in both manual and automatic modes (servo motors). In manual dampers, control is done by hand and external levers, and in automatic dampers, they are performed by the servo motor damper motor.
For example, when starting any heating device, make sure that the air damper is open, because closing the damper is extremely dangerous and can cause bites or fires.
You can also make a price as a seller
Request a price to negotiate and get a better offer
Suppliers
| Suppliers | Expiration date | Price (Toman) | Minimum order (MOQ) | City | Phone number |
|---|---|---|---|---|---|
The price is not recorded | |||||
similar products
Damper motor LKS 120 04 Honeywell
Specifications :
The Haniol torch damper motor is used in gas burners, air vents and oil burners.
The performance of this actuator damper is gradual (Modulation), which has a high performance accuracy.
The power supply of the Haniol lks 120 damper motor is 120 volts and its frequency is in the range of 50 to 60 Hz.
This electric damper operator has a 90-degree Stroke Rotation course and is made in Western Europe.
One of the unique features of Haniol LX series damper motors is the ability to rotate both left and right.
Product Specifications
Shaft (Nr)
5
Torque (Nm)
75
Startup time (s)
3.5-30
rotate direction
right turn
Voltage (V)
230
Uses
Gas and diesel burners
Weight (kg)
0.5
Frequency (Hz)
50-60
