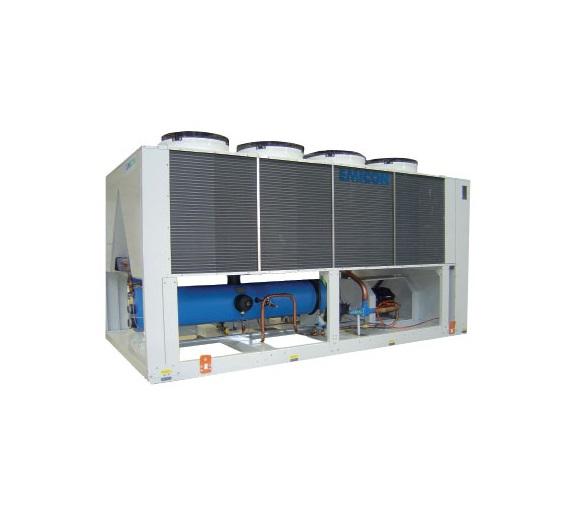

Chiller RAC Mabna

This chiller is used in industrial and air-conditioning processes that consider high efficiency at low loads and low production noise. It has a much smaller size and lower weight than other similar devices. These machines are fully assembled and tested at the factory and are charged with antifreeze and refrigerant oil and require only electrical and hydraulic fitting and installation at the installation site.

This chiller includes the following models:
RAE Standard Model Kc
Low noise model RAE S Kc
Very low noise model RAE U kc

EMICON Chiller Components Specifications:
Body:

The base and chassis of the machine is very thick galvanized steel, which is riveted by stainless steel. The whole body is painted with RAL 7035 coating.

Compressor:
These compressors are equipped with anti-vibration tires, overload protectors and crankcase heaters to prevent the viscosity of the oil and are provided with direct-start motors cooled by suction gas. These compressors are powered by polyester oil and have IP54 protection.

operator:
The evaporator is a type of stainless steel plate converter, with one or two refrigeration cycles and is highly insulated with high-thickness elastomeric foam and can be UV-coated. The maximum operating pressure is 6 bar water and 42 bar refrigerant. The evaporator is fitted with a flowmeter that turns off the device when the evaporator is running low.

Condenser:
The condenser has copper tubes with aluminum microphones. To increase heat exchange, the design of the filters is based on Turbo-fin technology. The maximum relative pressure of the condenser is 45 bar.

Fan:
High-efficiency direct-coupled direct-current fan features aluminum blades with low noise level and IP54 protection class. They are also fitted with overload protection thermostats and galvanized steel gratings.

Refrigeration Cycle:
Each refrigeration cycle is fitted with disconnecting valve for refrigerant charging, anti-freeze sensor, valve disconnecting valve, site glass, drive filter, high pressure safety valve, thermostatic mechanical expansion valve, and pressure gauges and switches. is.

Electrical board:
Manufacture of electrical boards is in accordance with IEC 204-160204-1 / IEC. Electrical board when installing the device outdoors with a protective cabinet, including control and power system, microprocessor electronic board equipped with keypad and display, main lock-type switch, transformer to separate main circuitry from auxiliary circuits Compressors and fans, protection fuses and switches, alarm terminal and on / off system, board terminal, phase sequence relay and interface to BMS system.
