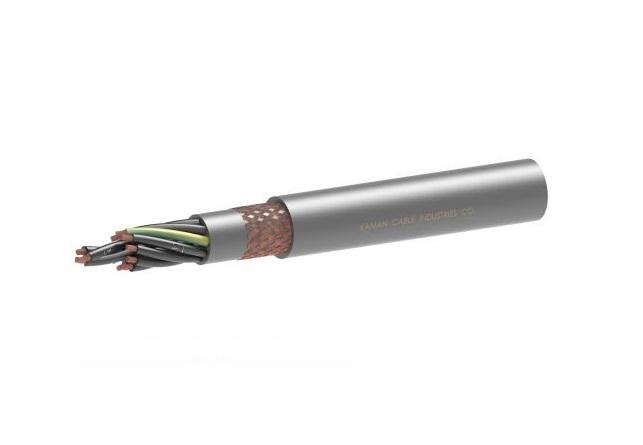

Shielded flexible control cable KCI

Shielded flexible control cables are suitable for connecting the components of devices used in the production line, including machinery and mechanical transportation equipment.
Direct connection of these cables to the main power is allowed. Continuous bending of shielded cables is not allowed. If it is not necessary to move these cables while using them, it is recommended to install them in channels, trays, etc. It is recommended to use these cables in places where there is a conventional limit of magnetic field interference. These cables are designed to be used indoors and where the ambient temperature is between +5 and +40 degrees Celsius.

Shielded flexible control cable standard

60227 IEC 74 or ISIRI (607) 74 with a nominal voltage of 300/500 V.

Shielded flexible control cable structure

Conductor: annealed copper group 5 (flexible) according to IEC 60228 or ISIRI 3084
Insulation: PVC mixture of PVC/D type
How to place the fields:
Strands are woven together in one or more concentric layers. It is not allowed to use a single strand in the center of the cable. Cables with three or more strands have one strand in green and yellow.
Middle cover: usually a longitudinal polyester tape is used on the spun fibers (NYSLCY type), but on request
A mixture of PVC/ST5 can be used instead of tape (NYSLYCY type).
Cutting: tin-coated or non-tin-plated wire braided.
Coating: PVC mixture of PVC/ST5 type. The color of the coating is usually gray (this type of coating is not oil-proof).

Purchase and price of shielded flexible control cable of Kaman cable from the market
