CCTV Tester PFM905-E Dahua

CCTV tester often has a display that can be installed and used on different types of CCTV depending on the type. Cameras such as analog CCTV cameras, HD analog cameras, AHD cameras as well as IP network cameras can be tested through CCTV tester systems.

CCTV tester often has a display that can be installed and used on different types of CCTV depending on the type. Cameras such as analog CCTV cameras, HD analog cameras, AHD cameras as well as IP network cameras can be tested through CCTV tester systems.

CCTV tester often has a display that can be installed and used on different types of CCTV depending on the type. Cameras such as analog CCTV cameras, HD analog cameras, AHD cameras as well as IP network cameras can be tested through CCTV tester systems.

CCTV tester applications and applications
Search the other end of Kabul for network maintenance and engineering
Installation and maintenance of CCTV cameras
Testing of various types of CCTV cameras such as Dome Camera and و
CCTV data transmission channel testing
PTZ controller
Features and technical specifications of various types of CCTV testers
LCD display tailored to the user's needs
Low energy consumption
Ability to limit performance by hour
Ability to select the language in the device menu
Ability to adjust the brightness, contrast and color of the screen
Cable Scan capability
Ability to send a signal
Ease of cable connection detection
Ease of identifying and adapting PAL and NTS video modes
It has an advanced color generator to test the videos sent from the CCTV camera
Has a portable Micro SD memory
Equipped with LED lamp and ease of use at night or in the dark
Ability to define shortcut keys by the user to increase speed and accuracy
Equipped with digital multimeter and voltmeter, ammeter, resistance meter and capacitance meter with the ability to measure and test diodes
Very high zoom power (10x) to enlarge video images and see full details
Ability to take photos of video images and save it on a memory card under common formats such as JPG and…
Ability to test PING
Ability to test CCTV cameras under IP network and other Internet ports and check how they work
Scanning IP address and speeding up the identification and connection of CCTV systems to the Net
Ability to easily identify the POE switch port and send unique signals
Link monitoring
Identification of short circuit measurement point (including network cables, BNC and…)
Scan PTZ addresses and PTZ camera ID search
Ability to test network cables and telephone line cables
Multi-protocol supports a large number of protocols (approximately 30 protocols)
Has suitable and quality batteries
Ability to display image and data on the screen at the same time

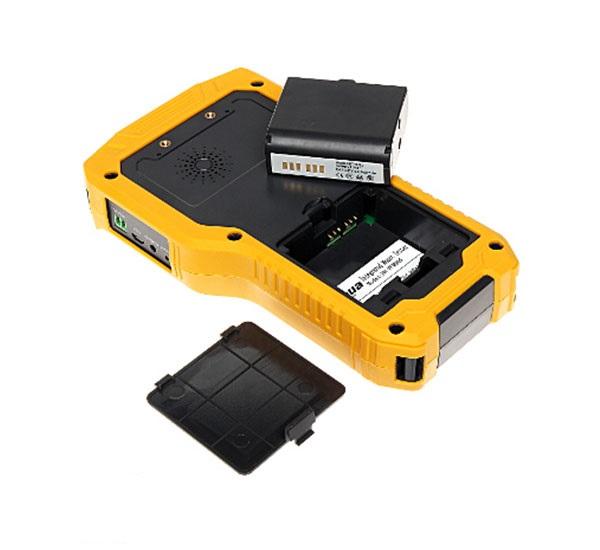

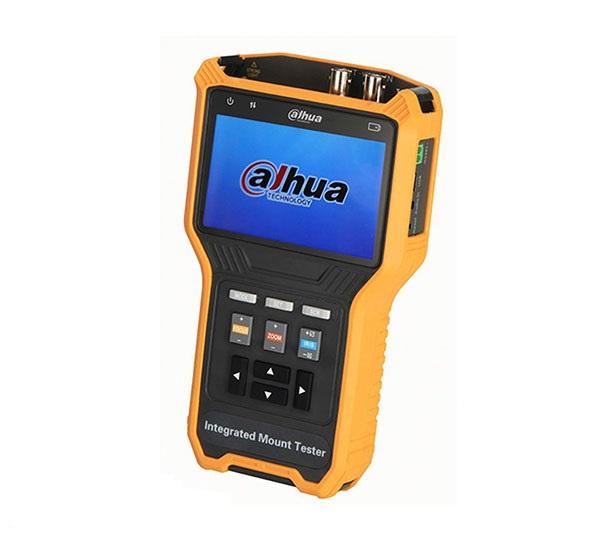

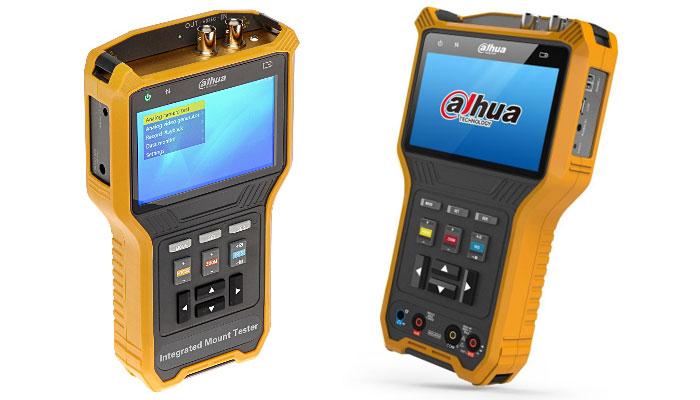

Dahua DH-PFM905-E CCTV Tester is one of the CCTV accessories that is offered to customers in the security equipment market. This camera tester has a 4-inch TFT screen with a resolution of 480 x 800 pixels. This product has a lithium polymer battery that can be charged for up to 5 hours, and after charging, it will be charged in two hours with a voltage of 12 volts and a current of 1 amp.

This tester is equipped with two LED lights in the upper part of its body, and next to them, there are two BNC plugs as analog video input and output. On the side of the body of this CCTV tester is an RS485 output, a micro USB connector for connecting a flash memory, a 12-volt power input and output, and a 3.5mm audio input. Cameras supported by this test device include HDCVI, AHD, TVI, CVBS and its flash memory is equal to 8 GB. This product has the ability to be updated via PC and supports different languages ​​such as English, Chinese, Spanish, etc.
