Cable sprayer 3x1.5 H05VV-F Royan

Royan
Iran

Cable (flexible cable or flexible cable) of two or more single-stranded conductors made of copper metal and insulated in its wires in lightweight PVC polymer (PVC) cables The type of PVC / D polymer and PVC polymer blend cables are made of PVC / A polymer. Lightweight cables as input and connection cables for electrical appliances, home appliances and appliances with two plugs fixed to the cable and power cables for outdoor, underwater, indoor electrical power supply Water, indoors, cable ducts, power plants, industrial uses, in distribution centers as well as in consumption networks and where mechanical damage to the cable is not likely.
You can also make a price as a seller
Request a price to negotiate and get a better offer

Suppliers

SuppliersExpiration datePrice (Toman)Minimum order (MOQ)CityPhone number
The price is not recorded

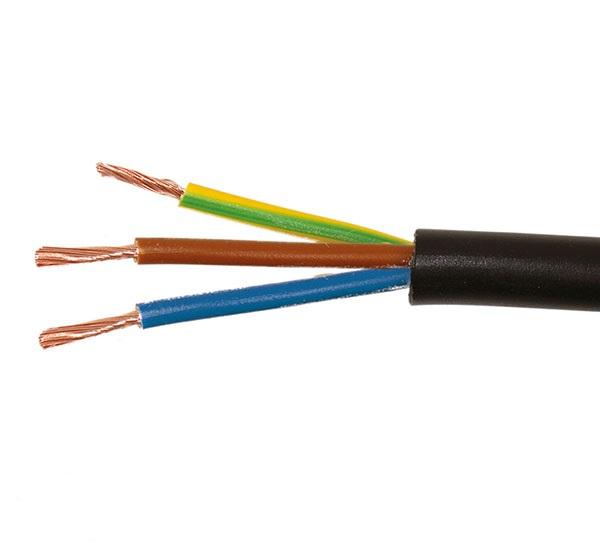

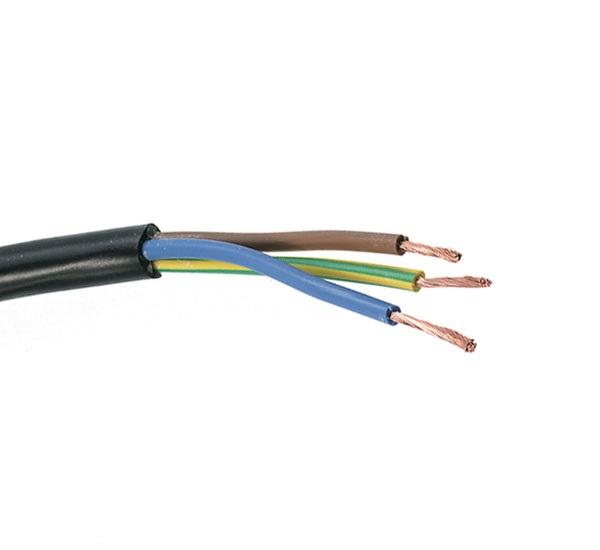

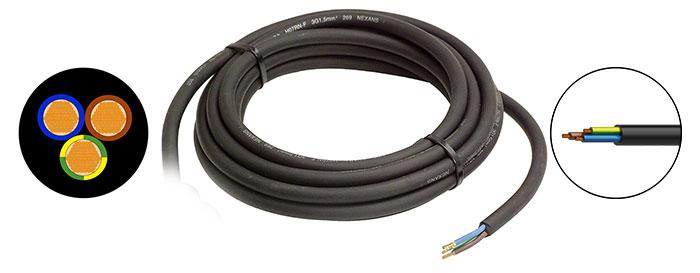

Cable sprayer 3x1.5 H05VV-F Royan

Cable sprayer (flexible cable or flexible cable) of two or more single-strand sprayer wires whose conductor is made of copper metal and the insulation used in its wires is also in lightweight PVC polymer (PVC) polymer cables from The type of polymer is PVC / D and in power sprayer cables, PVC polymer (PVC) polymer / PVC / A type is formed.

From light-spraying cables as input and connection cables to electrical appliances, home appliances and machines, the two branches of which are permanently attached to the cable, and from power-spraying cables to supply electricity outdoors, underground, indoors. Water is used indoors, cable ducts, power plants, industrial applications, in distribution centers as well as in consumption networks and where there is no possibility of mechanical damage to the cable.

Royan 3-strand cable sprayer uses ISIRI 607 ​​53 standard and is a conventional flexible power cable (H05VV-F) with 32 conductors of group 5 annealed copper to conduct electricity. This product has a good tolerance against moisture due to the use of PVC insulation with a diameter of 3.1 mm, and this insulation prevents electricity leakage. This cable is easy to install and operate and is used in electronic equipment that requires a flexible cable. This cable is sold in the market of electrical and electronic equipment with features such as 1.5 mm square cross section, PVC sheath with 8.2 mm diameter and nominal voltage of 300/500 volts.



Product Specifications

Cross section (mm ^ 2)
1.5
Rated voltage (V)
300-500
Conductor material
Annealed copper Group 5
Number of conductors in each string
32
Conductor diameter (mm)
0.24
Insulation material
PVC
Insulation diameter (mm)
3.1
Cover material
PVC
Coating diameter (mm)
8.2
Standard
ISIRI 607 ​​53
