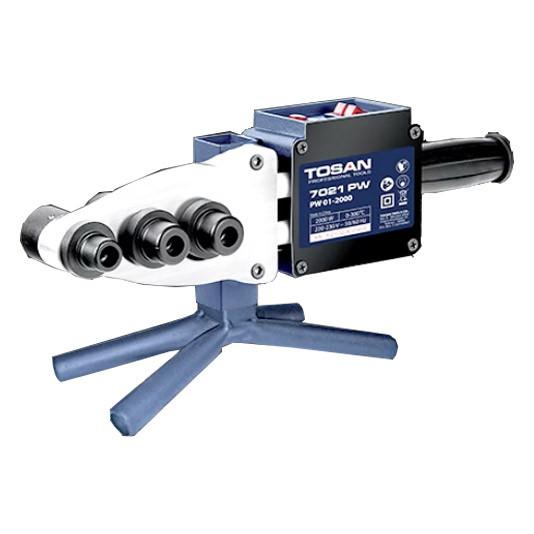

Pipe Welding Machine 7021PW Tosan

The green tube iron has one or two electrical elements and the pieces are used in the form of male and female. The female piece is used to enter the pipe and the male piece is used to connect and generate heat and heat the pipe. The appropriate bite should be selected based on the size of the pipe. When buying the desired autolume, you should pay attention to which bite sizes you need. The bite must be clean when connecting. Use a special wrench (Allen) to install the bites.

How to use
First, cut the pipe to the desired size by cutting the pipe to the desired size.
Then place the ironing machine on the special stand and choose the right bite with the diameter of the pipe.
Clean the bites and install them on the tube racket so that there is full contact between the element and the bite. Secure the bites with a special wrench to the rocket.
After connecting the green pipe welding machine to electricity and heating the iron to 260 degrees, and turning off the thermostat light, which means that the device is ready to work.
Using an Allen wrench, you can close the bites well and turn on the machine.
Adjust the desired temperature using the device elements.
To begin, turn on both switches (on and off switch) on the top of the device (each switch is for one element), then set the dimmer to the desired temperature. After a while it reaches the set temperature.
Once the two pieces are warm, they are easy. Put them together without rotation and connect them. Be sure to put the two pieces together correctly and at the right angle, because it is not possible to separate them after cooling.
For complete information on welding time and cooling time, you can read the table related to welding information. It is usually in the manual of the device. But in general, if you touch the connection with your hand, you should not feel too hot. .
After use, the device temperature drops due to contact with the solid tube. At this time, the device thermostat automatically raises the temperature again.

Description :

- Large rocket with the ability to install three bites simultaneously

-Has a 16 amp quality thermostat

- Element with a power of 2000 watts with a thermal power of 300 degrees Celsius

-With bite size 20 - 22 and 25

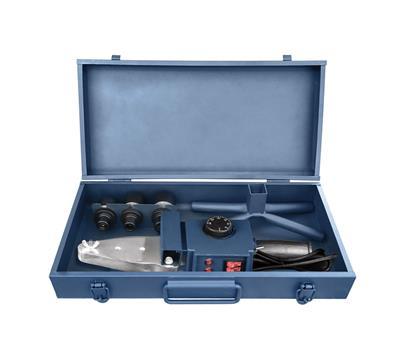

- Has a light aluminum base and metal carrying case

- Has 2 on-off keys
