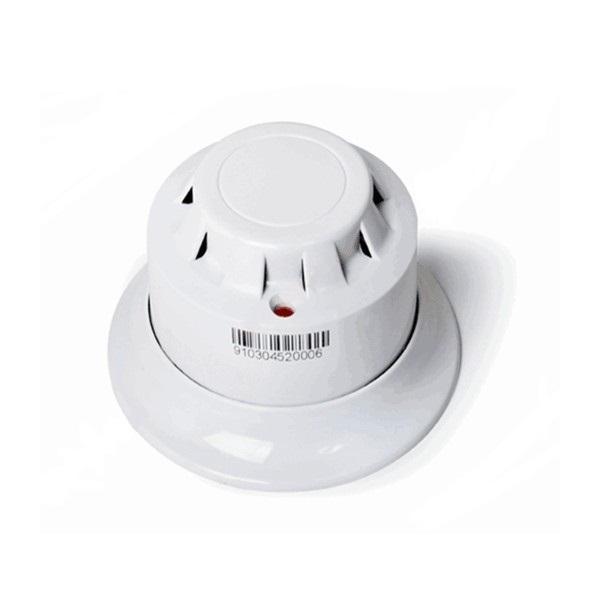

Smoke Detector 24v Ariak

Ariyak Electric Co., with its 28 years of activity in the field of producing and equipping fire alarm equipment, has achieved its position in the market of selling these products. The detector is a means of detecting fire and is constructed in such a way that under normal conditions the light passes through it and is confined to the embedded cell. When the smoke particles appear, some light is emitted by the smoke particles, thus being received by the sensor diode and then activating the detector and sending a signal to the control center or central device to alert the fire. In the following, we will examine further the Ariac 24V Ionized Smoke Detector and find out how it works, its features and features.

The Ariac ionized smoke detector sensor consists of two outer and inner chambers, and the ammonium 241 element is foiled in the inner chamber while a detector field is operated between the two chambers. When the smoke enters the field, it changes the voltage field and this voltage change by means of the electrical board to the alarm or alarm and the LED indicator light illuminates.

Generally by purchasing an Ariac Smoke Detector you will benefit from a detector with the following contents:

- An optical cell or optical trap
-A lens to adjust the light in the compartment
-A photodiode (light-sensitive diode)
- Photoelectric sensors (electric photo)
-Ironized ariak fire detection ionizer

Aryac smoke detectors are sensitive to invisible smoke and are suitable for areas such as the power room, computers and more. This detector is a good tool for detecting high smoke free fires that are used in public places, homes and factories. In general, the price of an Ariac smoke detector seems very affordable and how to install it correctly is as follows:

24V supply voltage must be connected to detector pins 1 and 6 (base positive 1 and base negative 6)
When the detector is mounted on the stand, 24V voltage is provided at terminals 2 and 5, which can be used as an auxiliary output for powering the next detector or warning circuit.
The output contact to command the warning circuit must be taken from pins 3 and 4.
In order for an alarm circuit to be able to command multiple detectors, base number 1 of the detector must be connected to each other and base number 1 to each other....
