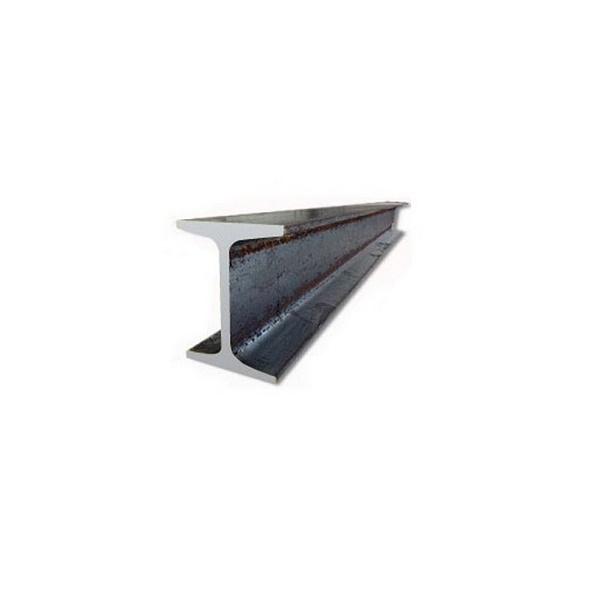

INP beam 140 Esfahan steel
Esfahan steel
Iran
INP beams are made with narrow and sloping wings according to the national standard of Iran 3277 and 1-1025 DIN. Among different types of INP beams, the percentage of chemical compounds, mass weight and static values vary.
You can also make a price as a seller
Request a price to negotiate and get a better offer
Suppliers
| Suppliers | Expiration date | Price (Toman) | Minimum order (MOQ) | City | Phone number |
|---|---|---|---|---|---|
The price is not recorded | |||||
similar products
INP beam 140 Esfahan steel
INP beams, like IPE beams, are I-shaped. INP beams in Iran are produced according to Russian and Chinese standards. The difference between INP and IPE beams is in their wing thickness. In INP beams, the wing thickness decreases as the distance from the die increases.
General advantages of using beams:
- Possibility of development after completion of the structure
- Ability to connect more pieces together
- High speed of execution and installation
- More use at high altitudes
مشخصات ابعاد و وزن
Height (mm)
140
Wing width (mm)
66
Thickness (mm)
5.7
Wing thickness (mm)
8.6
Radius of curvature of corners (mm)
3.4 and 5.7
Weight one meter (kg)
14.3
Minimum yield stress (N / mm2)
235
Tensile strength (N / mm2)
360
Minimum elongation (%)
22
