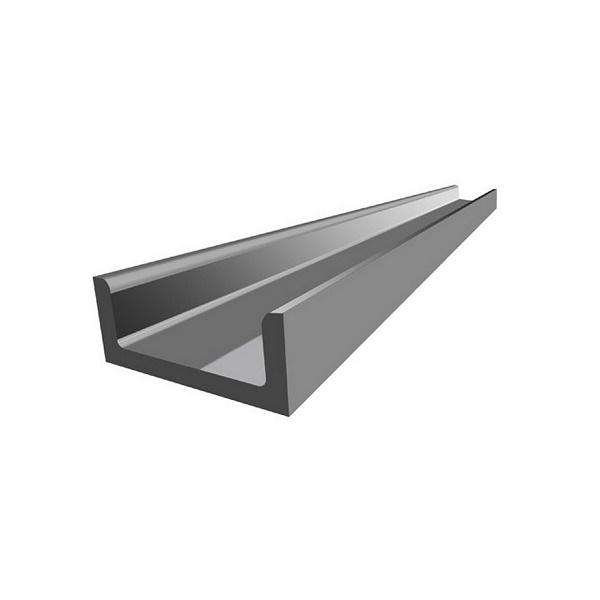

Heavy unparallel wing U-channel 10 Jahan Foulad
Jahan Foulad
Iran
The channel profile is a cross section consisting of a horizontal die and two vertical wings that curve at the junction of the wings to the Latin U and C letters, which differ slightly. The criterion for naming the stud is its height, that is, the outer distance H between the two wings, in cm.
You can also make a price as a seller
Request a price to negotiate and get a better offer
similar products
Heavy unparallel wing U-channel 10 Jahan Foulad
The profile is a steel cross-section made of carbon steel rolling shafts with a horizontal die and two U-shaped vertical wings with rounded curved interior angles. This profile falls into the open profiles group. This profile is widely used in industrial and construction applications.
Application of channel:
- For the construction of construction equipment
- To repair architectural monuments
- Construction of machinery base
- Build a framework
- Use in marine organization
- To build truck skeletons
مشخصات ابعاد و وزن
Height (mm)
100
Wing width (mm)
50
Thickness (mm)
6
Wing thickness (mm)
8.5
Cross-sectional area (cm2)
13.5
Weight one meter (kg / m)
10.6
Wing junction radius (mm)
8.5
Wing corner radius (mm)
4.5
Minimum yield stress (N / mm2)
235
Minimum tensile strength (N / mm2)
360-510
Maximum elongation (%)
26
