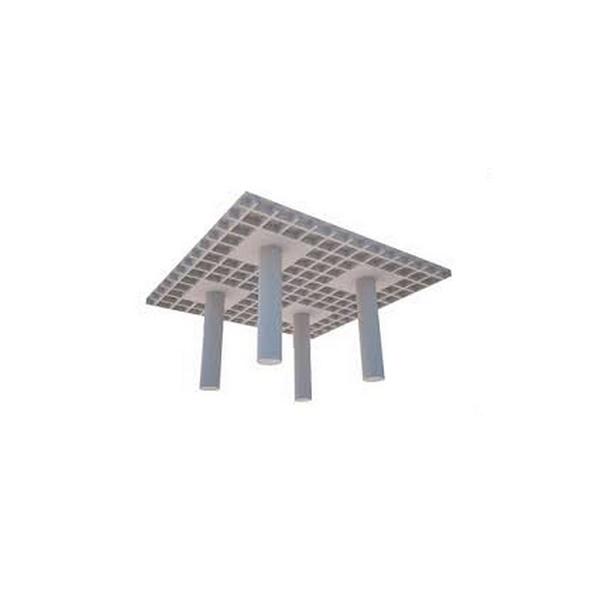

Cuboid waffle slab CU 180 Cuboid
Cuboid
Iran
Cuboid waffle slab is a new type of waffle ceiling system that has many advantages over the classic waffle ceiling due to its innovation in the type of mold and how it is implemented. Classic Waffle Ceilings due to the high cost of glass and metal molds, the inability to make concrete concrete-free and difficult to implement, were not well received in Iran. Cuboid waffle ceiling While retaining the benefits of a waffle roof, it eliminates all the problems of classic waffle roofs and is technically and economically preferable to other roof systems.
You can also make a price as a seller
Request a price to negotiate and get a better offer
similar products
Cuboid waffle slab CU 180 Cuboid
Waffle ceiling or lattice is a double slab made of orthogonal concrete joists and covered with a slab of constant thickness. The Waffle ceiling has been used extensively in the US and European countries since the early 1940s. Because of its unique beauty, the Waffle Roof has always been a favorite among architects in a variety of structures such as passenger terminals, parking lots, residential buildings, towers, hotels, amphitheaters, meeting rooms and the like.
Benefits of cuboid waffle slab:
- Dead weight loss and seismic mass
- Ability to run long openings
- Fixed roof thickness
- Fireproof
- Run speed
- No need for high strength concrete
- Possibility to run on concrete and steel structures
- Freedom of action in space design and column layout
- Architectural beauty and no need for cover under the roof
- Vibration control
- Deformation control
- Possibility of modular and simple implementation of false ceilings
- Optimized noise control and acoustic ceiling
- Possibility of using hollow ceiling space
- Ease of installation and operation of the pop-up before or after the ceiling
Span (cm)
6
Roof thickness (beam-based slab) (cm)
23
Equivalent thickness of used concrete (slab supported by beam) (cm)
10.5
Roof thickness (pillar flat slab) (cm)
23
Equivalent thickness of used concrete (flat slab supported by column) (cm)
10.5
