Electric ground circulator pump 200-50 Pumpiran

Pumpiran
Iran

Pumpiran was established in Tabriz in 1975 and today it is one of the largest manufacturers of various types of pumps in Iran. The company's circulators, at a reasonable price, are a serious competitor for foreign brands in the pump market in Iran.
You can also make a price as a seller
Request a price to negotiate and get a better offer

Suppliers

SuppliersExpiration datePrice (Toman)Minimum order (MOQ)CityPhone number
The price is not recorded

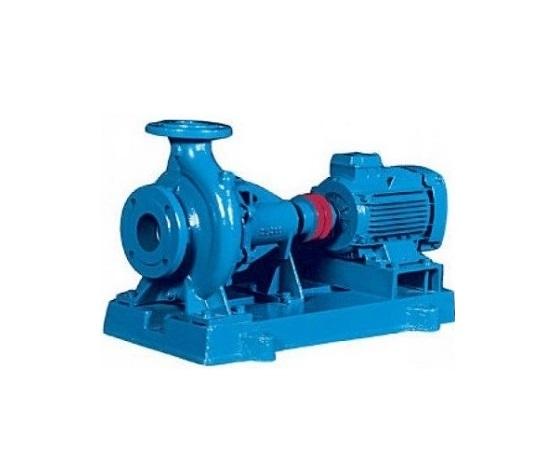

Electric ground circulator pump 200-50 Pumpiran

Attributes :

Pumpiran centrifugal pumps have an output diameter of 32 to 300 mm.
In Pumpiran ground pump circulator, model 250-32, the test pressure is 16 bar and the working pressure is up to 10 bar.
The material of the integrated snail chamber and the impeller of the Pumpiran ground pump circulator is model 250-32 of gray cast iron (GG-25).
Pumpiran 1-storey horizontal centrifugal pumps are produced with a separate motor and a single single-axle cochlear chamber in terms of dimensions and performance according to the German KSB design and DIN 24255 standard.
The permissible temperature for the circulating fluid of Pumpiran centrifugal pumps is from 50 to 110+ in case of pumping gravity pump with graphite strip and up to + 140 =C in case of using suitable mechanical flood.

Product Specifications

Thrust flange diameter (in)
"""2"
Electric motor power (HP)
3
Dubai (GPM)
150
Head (Ft)
40
Engine Speed ​​(RPM)
1450
Enclosure material
Integrated snail
Material of butterfly
Gray cast iron (GG-25)
Suction flange diameter (in)
"""½ 2"
Impeller diameter (mm)
209
