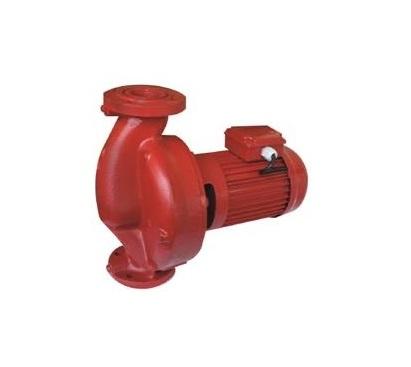

Linear circulator pump A7 Semnan Energy

Attributes :

high efficiency
The price is right
It has a quiet and quiet function
Semnan linear circulator pump shaft is made of 2-inch three-phase energy model A7, stainless steel.
Calculation of head and flow rate of Semnan 2-inch energy linear circulator pump, three-phase A7 model:

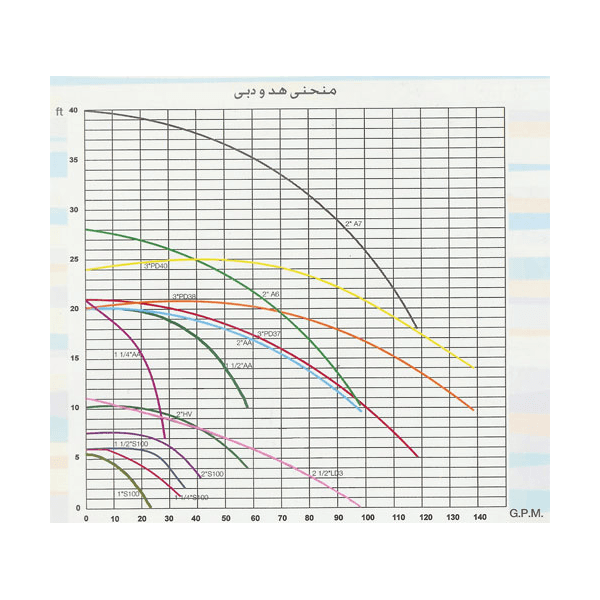

The head numbers and Dubai provided for Semnan pump are considered to be in line with the maximum efficiency range, but the diagram of Semnan energy pump selection is also provided for further investigation and accurate selection of the required pump in the above images.

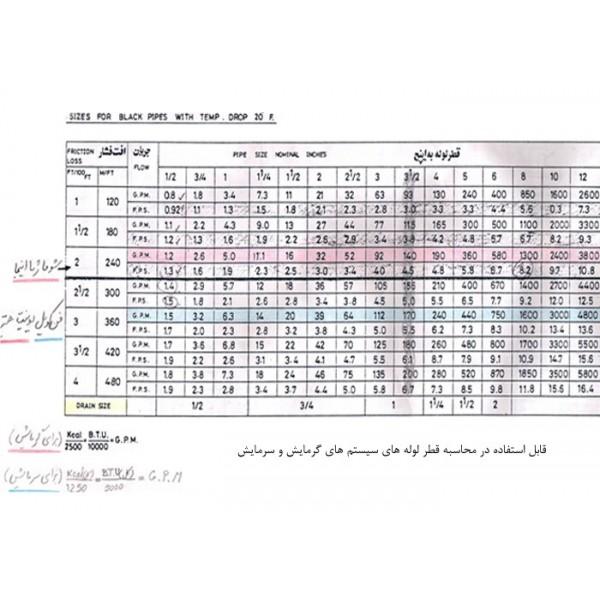

To calculate the water flow rate (GPM) of the building heating system, divide the amount of calories required for building heating by 2500, and to calculate the flow rate of the cooling system, divide the calorific value of the cooling system by 1250.
To calculate the important and sensitive issue of the circulator pump head, it is necessary to use the method of calculating the pressure drop length of the pipes or the experiences of facility engineers for each building. Refer to the circulator.
The calculation and selection of circulator pumps for building cooling and heating systems should be done only by experienced engineers based on the specifications of the project design, otherwise (even with proper operation of other engine room equipment) the system may face many problems.
