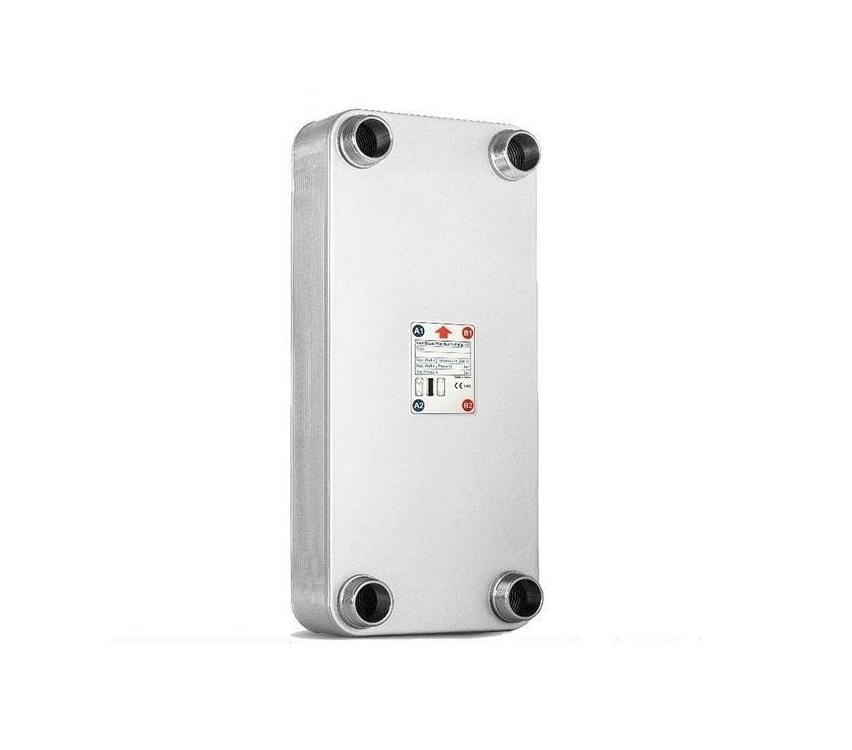

Thermal converter TEP-750 Kaori

Kaori
Iran

The TEP-750 Series K Series Heat Transformer is manufactured by KAORI Taiwan (with Mلller technology).
The TEP-750 Series K-Series Heat exchanger, with a efficiency of more than 90%, provides immediate and hygienic hot water consumption at the lowest cost and without wasting energy. Jacuzzi, oil cooling and heating systems and underfloor heating are used.
You can also make a price as a seller
Request a price to negotiate and get a better offer

Suppliers

SuppliersExpiration datePrice (Toman)Minimum order (MOQ)CityPhone number
The price is not recorded

similar products

Thermal converter TEP-750 Kaori

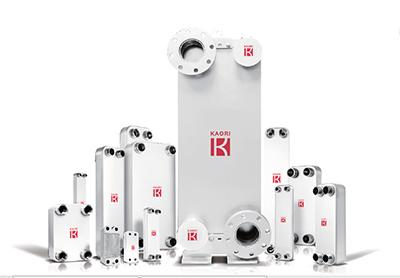

Kauri uses high-quality, corrosion-resistant raw materials to produce a variety of plate heat exchangers.

The K series is the most complete series in terms of dimensions and the most widely used plate heat exchanger in refrigeration thermal industries.

The maximum operating pressure of the K-series TEP-750 series thermal plate heat exchanger is 30 times and the maximum test pressure is 43 bar. The maximum operating temperature of this plate converter is 200. C.

The body of the Kauri K-Series plate heat exchanger is made of 316 NipPON stainless steel (Japan) with 304 steel connections and its welding material is copper or nickel.

Advantages :
Optimization of heating and cooling systems
Reduce the cost of the life cycle
Low volume and easy to install
Corrosion resistant
High heat transfer coefficient
Reliable and proven quality

The K series of Kauri converters has the most applications among the other series of this product:

Cooling-heating
 Congratulations
 Thermal pump
chiller
Central cooling and heating
Solar heating
Process cooling
Heat recovery
Temperature controller
Laser welding and cutting machine
Hydraulic cooling system
Wind turbine gearbox
 And...

Lit / Hr
7500
Kcal / Hr
000"

Product Specifications

Heat level (ft2 m2)
2.42 (26.05)
Maximum operating pressure (bar)
30
Dimensions (mm)
71.6 * 246 * 528
Cold side connection (in)
2
Hot side connection (in)
2
Horizontal connection distance (mm)
174
Vertical connection distance (mm)
456
Material
Stainless Steel 316 Nippon Japan
