Steel Hot water boiler C300 Azaran Sanat Emertat

Azaran Sanat Emertat
Iran

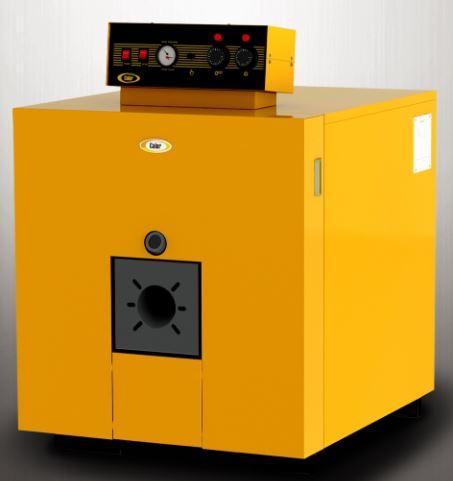

The Calor C300 hot water steel boiler has a capacity of 300,000 KCal / Hr. This product is very powerful and has a safe and desirable performance and is produced from raw materials with internal and external quality, with the highest quality levels.
The use of strict and environmentally friendly standards has made Calver hot water steel boilers a quality product.
You can also make a price as a seller
Request a price to negotiate and get a better offer

Suppliers

SuppliersExpiration datePrice (Toman)Minimum order (MOQ)CityPhone number
The price is not recorded

Steel Hot water boiler C300 Azaran Sanat Emertat

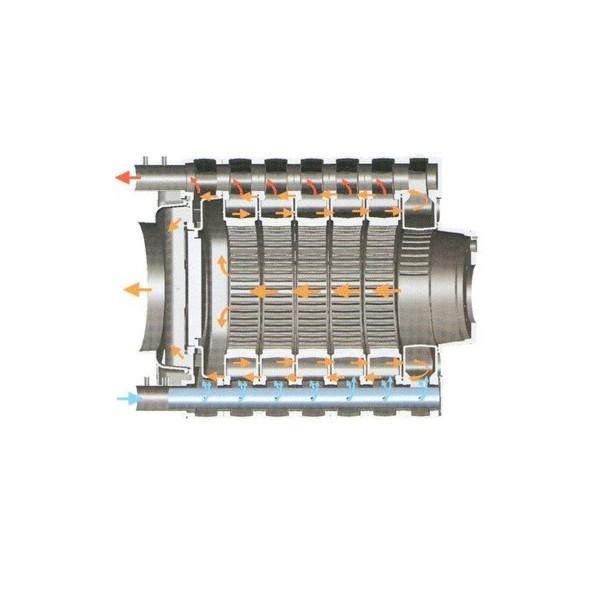

According to the copied design of the Italian company Permonti, the Calor hot water boiler is produced and supplied in 12 different models with a heat capacity of 45000 to 800000 kcal per hour, with high working pressure and return flame technology. They are ideal for various types of residential, industrial, commercial, office and hospital projects for heating purposes. Features of Calor C300 steel spa boiler:Calver hot water steel boilers have a precise and calculated design and the components of these boilers have the highest proportion between the volume of combustible gas and heat exchange surfaces.As mentioned above, the above boilers have a great design, this factor helps to increase the life and durability of these products.The working pressure of steel boiler boilers is 6 bar and they have a performance in accordance with the valid standards with high thermal efficiency in the relevant heat capacity.These boilers have reverse flame technology, so that to increase heat exchange between the combustible gases and water, the combustion chamber is designed with a cylindrical shape with a closed end; then, the flame is pressurized under the door due to combustion. The front of the boiler is reversed and therefore the longer it stays inside the combustion chamber.Also, in order to prevent pollution and ensure complete combustion, the exhaust gases are once again directed to the flame and hit the flame to complete the combustion.Finally, the heat condensed by the inverted flame is transferred to the water according to the radiant heat transfer method.It should be noted that the combustion chamber of steel boilers of Kalvar hot springs is completely surrounded by water and this indicates the existence of maximum heat exchange levels and as a result the uniform distribution of heating load on the wall of the combustion chamber.The front door of these boilers can withstand temperatures of 1200 degrees Celsius and is designed as a left or right hinge (this feature does not create any restrictions for the consumer as well as the installation space in the engine room).

ویژگی های کلی

Weight (Kg)
760
Working pressure (bar)
6
Fuel consumption
Gas-diesel-fuel oil
Heating power (Kcal / hr)
300
Heating power (KW)
372

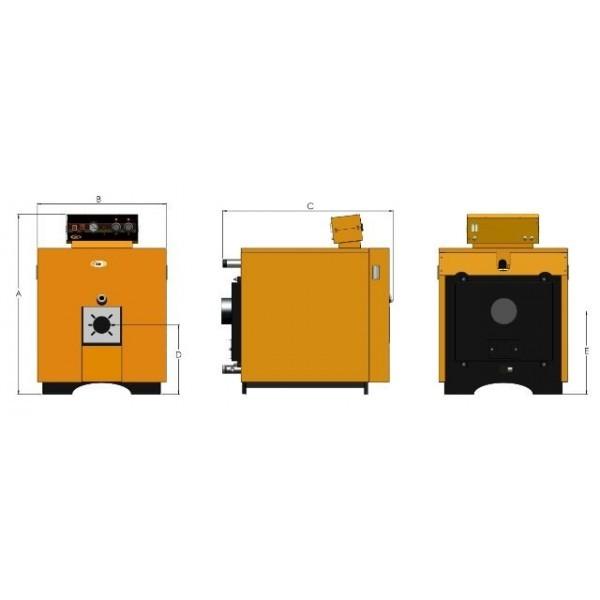

Dimensions (cm)
182 * 114 * 134
Main input and output size of the boiler (inch)
DN 80
Torch inlet diameter (mm)
155
Chimney outlet diameter (mm)
350
Boiler drain size (inch)
04-Mar
Torch center height (mm)
530
Chimney center height (mm)
720
Heat efficiency (%)
88
