Molten Salt Boiler Daboo Sanat

Daboo Sanat

Due to the limited melting point of different materials at high temperatures, fluids such as water, oil, etc. cannot be used for heat transfer. Therefore, at temperatures up to 550 ° C, molten salt is used as heat transfer fluid. Pressure is not required to use molten salt to raise the temperature.
You can also make a price as a seller
Request a price to negotiate and get a better offer

Suppliers

SuppliersExpiration datePrice (Toman)Minimum order (MOQ)CityPhone number
The price is not recorded

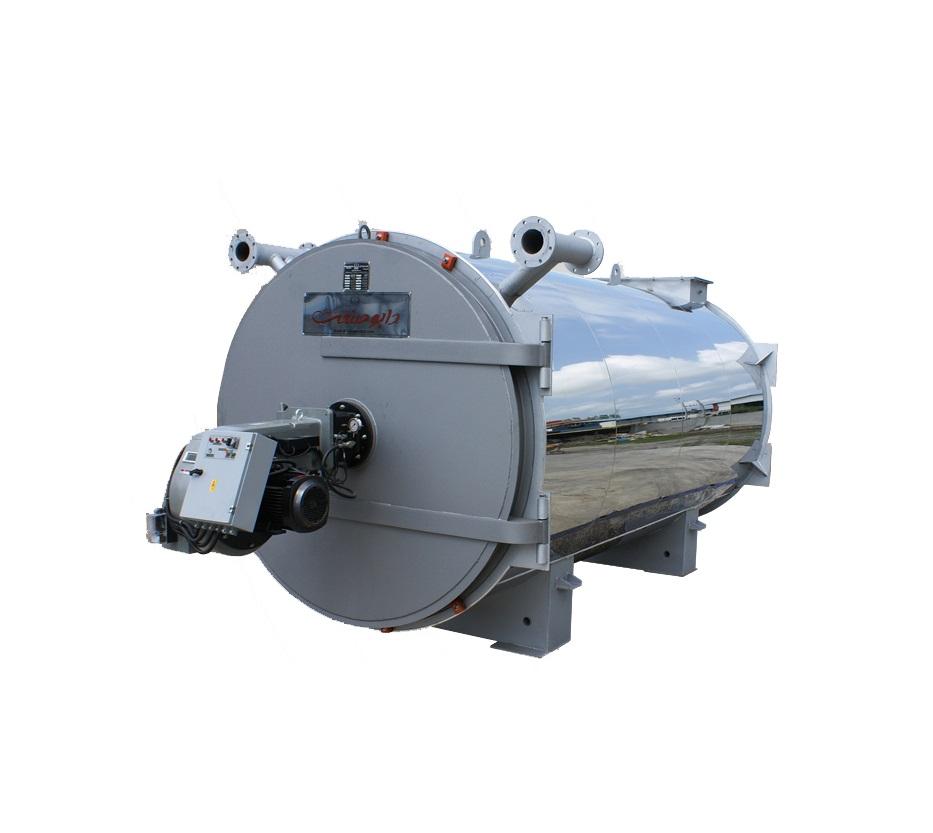

Molten Salt Boiler Daboo Sanat

Advantages and Specifications:

• The standard used in the design of this machine is ASME, NFPA and DIN4754.
• The minimum and maximum operating temperature of the molten salt boiler is 270-550 ° C.
• Minimum and maximum salt transfer rates are 2.5-6.6kg / hr.
• The design of molten salt boilers uses materials that have minimal corrosion and thermal conductivity and are capable of operating at high temperatures.
• Selection of materials, pumps, valves and fittings is important in the design of the molten salt system, and all fittings must be well protected against moisture penetration.
• For insulating boilers and connections, 7100mm thick ceramic fiber with a density of 135kg / m3 and a temperature tolerance of 1320 ° C is used.
• The thermal system is designed to withstand heat shocks.
• The design of the molten salt boiler is such that it always keeps the salt warm to prevent it from dissolving in the system.
• Controls are selected to withstand high temperatures and with no change in temperature.
• This device can be used in the production of aluminum oxide, melamine making, reactors, solar energy and generally where the temperature is high.
