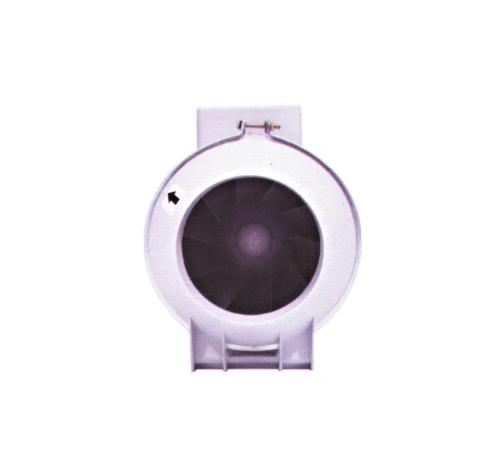

Interval ventilation VLN-12C2S Damandeh
Damandeh
Iran
Ventilators VLN-12C2S the inside of the channel with a flow of 260 up to 340 cubic meters has Area suction and discharge of a circular form, diameter of 120 mm and for installation in channels, used rounded.
You can also make a price as a seller
Request a price to negotiate and get a better offer
Suppliers
| Suppliers | Expiration date | Price (Toman) | Minimum order (MOQ) | City | Phone number |
|---|---|---|---|---|---|
The price is not recorded | |||||
similar products
Interval ventilation VLN-12C2S Damandeh
The VLN-12C2S in-channel ventilator with a flow rate of 260 to 340 cubic meters has a suction and circular discharge area of 120 mm in diameter and is used for installation in round channels. This product is made using injected plastic, is equipped with a power connection and its working voltage is 50 Hz and 230 volts. Also, the engine used in this product is class B and is suitable for working in environments with a temperature of 40 degrees Celsius. Is.
The design of the fan brackets is such that the motor and the impeller are separated without opening the adjacent channels. The fan is a two-speed fan that selects the speed by connecting the motor output wires. VLN drains are designed to be installed in the ducts of medium and large space ventilation systems.
Product Specifications
Application
Home / Food / Pharmaceutical / Commercial Office Centers / Health Centers / Restaurants
Voltage (V)
230
Power (w)
54
Consumption current (A)
0.24
Number of engine bridges
2
Thermal class
B
Degree of protection (IP)
IP44
Aeration power (m3 / h)
260 ~ 340
Maximum pressure (PA)
115
Sound (db)
50
Engine Speed (RPM)
Two speeds: maximum 2620
Butterfly dimensions (cm)
12
Output cross section (cm)
گر د - 12
Dimensions of the inlet (cm)
گر د - 12
Material of butterfly
Injected plastic
Frame dimensions (cm)
26.3 * 21.5
Frame material (body)
Injected plastic
Varzen (Kg)
1.6
