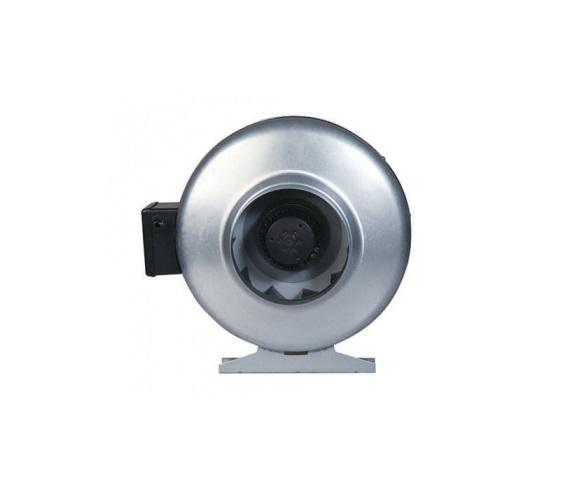

Duct fan GF100-2E 92-15 Zilabeg
Zilabeg
Iran
There are a number of linear centrifuges with a percussion impeller motor that are installed between the channel or the pipe where they have limited installation space.
These fans are made in three different models and sizes for pipe diameters of 10, 12 and 15 cm.
These fans are made in three different models and sizes for pipe diameters of 10, 12 and 15 cm.
You can also make a price as a seller
Request a price to negotiate and get a better offer
Suppliers
| Suppliers | Expiration date | Price (Toman) | Minimum order (MOQ) | City | Phone number |
|---|---|---|---|---|---|
The price is not recorded | |||||
similar products
Duct fan GF100-2E 92-15 Zilabeg
Due to the variety of sizes and types of easy design and installation in small and large industries, Zilabag GF series duct fans have many applications, some of which are important and practical features.
- Strong galvanized body that has high resistance to rust and corrosion.
- Engines are of rotating stator type which have a small and compact structure and high efficiency and longevity.
- Butterflies are of the Bokvard type (bent backwards).
- The degree of protection of the fans is IP54, which causes the proper performance of the fan in humid, dusty and dusty environments.
- The inner diameter of the impeller is 19 to 28 cm.
Product Specifications
Application
Industrial
Voltage (V)
220
Power (w)
62
Consumption current (A)
0.28
Number of engine bridges
2
Thermal class
F
Degree of protection (IP)
IP54
Aeration power (m3 / h)
350
Maximum pressure (PA)
360
Sound (db)
35
Engine Speed (RPM)
2360
Butterfly dimensions (cm)
10
Output cross section (cm)
Round - 10
Dimensions of the inlet (cm)
Round - 10
Material of butterfly
Polyamide plastic
Frame dimensions (cm)
19.4 * 24.3
Frame material (body)
Metal
Varzen (Kg)
3
