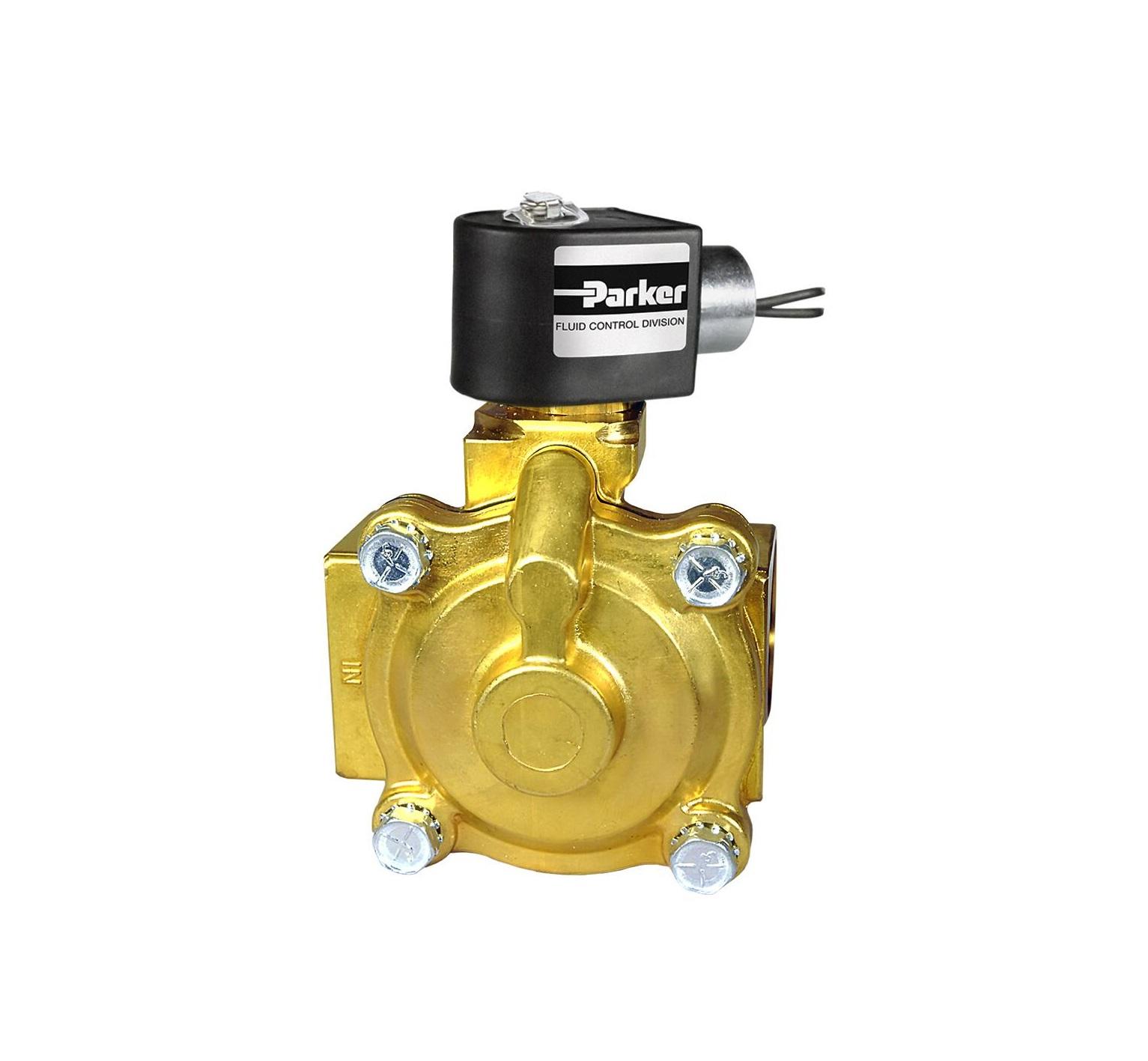

Steam solenoid valve 7321 - "3/8 Parker

This product is also known as 7321BIH00 in the market and is in the category of double-sided and diaphragm valves. These diaphragm valves are used for the passage of steam fluid and are not used in any way for the passage of fluids such as water and gas. Get. In general, these valves are of the diaphragm pilot type and require a minimum pressure difference to operate. These products are used to control water vapor in heating piping systems. 8 / are of the solenoid type, increase reliability and functionality in the piping system and have a significant operating speed. Due to the possibility of water hammer impact in the system, it is possible to change the structure by manually opening and closing the structure manually, regardless of the automatic nature of these valves, and also use the option of controlling the speed of milk drain operation. . Attributes :It has a body made of brassAbility to operate at a maximum temperature of 140 degrees CelsiusIt has a working pressure of 4 barFluid flow rate: 3 m3 / HrBest performance at the highest and lowest intra-system pressure differencesUnique aperture design for better fluid flow performanceOne of the fastest products in the electrical and hydraulic applications of intelligent plumbing systemsCompatibility with all types of electrical devices in the plumbing systemAbility to manually adjust the solenoid valve when the power supply is offIt has a stainless steel pilot to increase the efficiency and durability of the valveEase of installation, maintenanceMaterial of components:Body: RiceSpring: Steel 302Enclosed pipe: steel 304Patch: NBR - EPDMPiston: 430F steelRing: CopperDimensions:A: Equivalent to 69 mm B: 99.5 mm C: Equivalent to 40 mm
