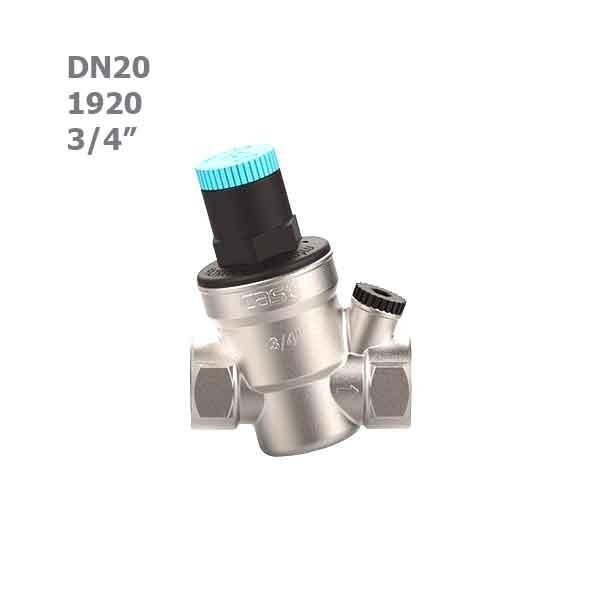

Pressure valve 1920 -"3/4 CS Case

Basically, the duty of CS case pressure relief valves, which are of the diaphragm type valves, is to prevent the placement of pipes, valves, pressure vessels, etc. in pressurized conditions more than the allowable pressure. In addition to having durability and efficiency, these pressure-breaking valves The above can only be used for a long time with timely replacement of cartridges and filters. As mentioned, the filters and cartridges of these valves can be replaced and both of these products are produced separately and marketed.

Attributes :
If, for any reason, the water pressure in the piping system rises, this pressure diaphragm valve prevents the pipe from exploding and the armatures from deteriorating.
Prevents damage to the plumbing system due to Water Hammer.
It drastically reduces the noise caused by water pressure inside the piping system.
Since it is generally the job of the CS Case diaphragm pressure relief valve to maintain the balance of pressure, you can use it to save water.
By reducing the test pressure from 7.8 bar (which is usually applied to test pressure breakers) to 3 bar, significant water savings can be saved.
In addition to protecting the piping system, in addition to these diaphragm valves, washing machines, steam boilers, solar energy systems, and a variety of boilers can be protected against the dangers of pressurized water.
The pressure of these valves is set to 3 times when leaving the factory, depending on the specific applications, this pressure can be adjusted between 1 and 5 times, so the use of a manometer during the construction of the piping system is mandatory.
CS Case Pressure Breaker Model 1920 Size "3/4" is used only to pass water fluid and do not use it to pass gas and air fluid.
Material of parts and information required for CS CASE 1920 pressure relief valve model, size "3/4:
Body: Rice
Plating: nickel
Sealing washer: NBR
Diaphragm: NBR
Springs: Steel
Cartridge: POM
Filter: Inox
Input pressure: 16 ~ 1 bar
Output pressure: 6.5 ~ 1 bar
Factory output pressure: 3 bar
Maximum operating temperature: 40. C
Flow Rate: 2.27 cubic meters per hour
Standard: TS EN 1567
