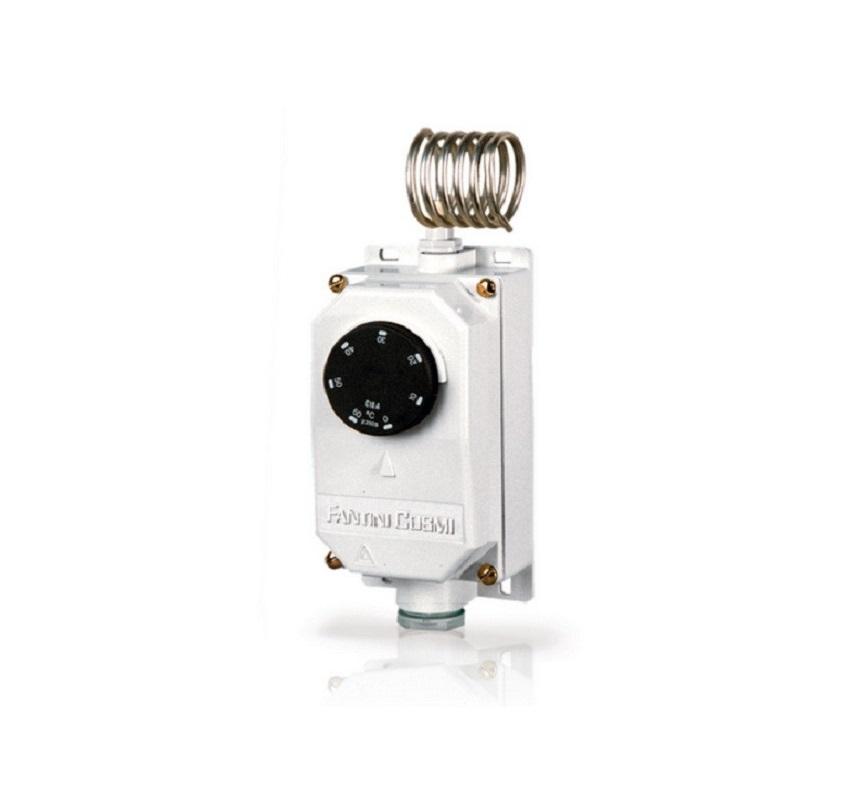

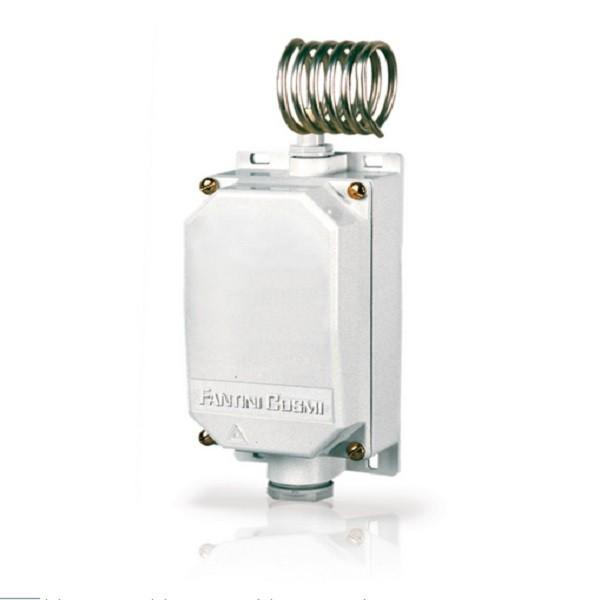

Thermostat C10A2Y Fantini
Fantini
Iran
Fantastic thermostat model C10-Y with helical capillary tube for temperature control in industrial environments such as warehouses, refrigerators, greenhouses and plant processing systems, control cabinets of three models C10A2Y, C10B2Y, C10C2Y
You can also make a price as a seller
Request a price to negotiate and get a better offer
Suppliers
| Suppliers | Expiration date | Price (Toman) | Minimum order (MOQ) | City | Phone number |
|---|---|---|---|---|---|
The price is not recorded | |||||
similar products
Thermostat C10A2Y Fantini
Attributes :
1- C10A2Y model:• Temperature range from 0 to 60 degrees Celsius• Differential (temperature difference) 2 ± 0.5 degrees• Calibration accuracy of 2. C• Maximum trail temperature 80. C• Maximum allowable body temperature 80 درجه C
2- C10B2Y model.• Temperature range from -20 to 40 degrees Celsius• Differential (temperature difference) 2 ± 0.5 degrees• Calibration accuracy of 2. C• Maximum trail temperature 60. C• Maximum allowable body temperature 60. C
3- C10C2Y model.• Temperature range from -35 to 20 degrees Celsius• Differential (temperature difference) 2 ± 0.5 degrees• Calibration accuracy of 2. C• Maximum trail temperature 50. C• Maximum allowable body temperature 50. C
General Features:IP65 protection degreeDiaphragm sensor made of stainless steelThe spiral capillary tube is made of tin tinCan be mounted on the wallBody, cover and degree of adjustment of thermoplastic, shockproof and self-extinguishing material (VO)Weight 0.16 kg
Product Specifications
Type
External
Protection rating
IP65
Temperature setting range (C)
0 to 60
Operating temperature (C)
0 to 40
Differential (temperature difference)
0.5 ± 2
Max allowed body temperature (C)
80
Calibration accuracy (C)
± 2
