Suppliers | Expiration date | Price (Toman) | Minimum order (MOQ) | City | Phone number |
---|---|---|---|---|---|
The price is not recorded |

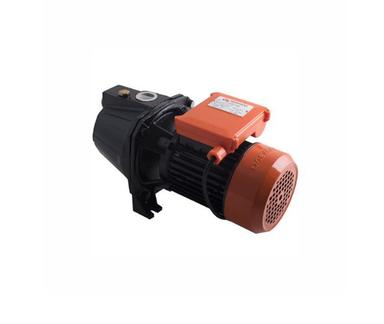

The product is manufactured in partnership with Pentax Italy. This 1-horsepower water pump with a torque of 2800 rpm is capable of producing water pressure up to a maximum of 65 meters and discharge of 10 to 50 liters per minute. The impeller is made of brass and has a stainless steel shaft and can operate with water temperatures up to 90 ° C. The DM80 water pump has an OVERLOAD thermal thermostat which automatically shuts off the pump if the water becomes too hot or the engine overheats. The DM80 pump is permanently operated (CONTINUOUS DUTY) and capable of operating for a long time.
The pump is suitable for industrial and agricultural purposes as well as residential and apartment water supply up to the eighth floor of the building. One of the important things to increase the life span of all centrifuge electropumps is to install them horizontally and in a fixed location. It is also recommended to use a filter valve at the pump inlet for clear water and a one-way valve at the pump outlet to prevent water from returning to the pump. It is worth noting that all parts and accessories of the DM80 water pump are available and replaceable. The DM80 diesel electropump has the highest EU standard CE mark.
Pump head or pressure:
Pump head or pressure means how high that pump can raise the pressure fluid. The head is centrifugal pumps in meters or feet, and for rotary pumps and positive displacements the head is calculated in bar, PSI and kPa.
Pump Types:
Water and drainage pumps vary widely in size, size, type and type of impeller and body, performance and application, and range from small linear pumps to large turbine pumps. Contact Rasakala Technical Partners to help you make the best choice. Pumps in general can be said to include dynamic pumps and positive displacements. Positive displacement pumps include rotary and reciprocating pumps and their types are as follows:
The rotary pump includes gear pump, loop pump, vacuum progressive pump, pre-pump, screw pump and blade pump.
The reciprocating pump also includes a floating piston pump and a diaphragm pump.
Rotary pump function:
In rotary pumps, fluid displacement is accomplished by rotating the gear and camshafts or blades.
Reciprocating Pump Performance:
In reciprocating pumps, the energy is transmitted periodically. In these pumps they are also the driving force of most of the electro-motors. A suction cylinder occurs and causes the fluid to suck into the valve. Then, by returning the piston, the fluid that is sucked is directed outward through another valve.
