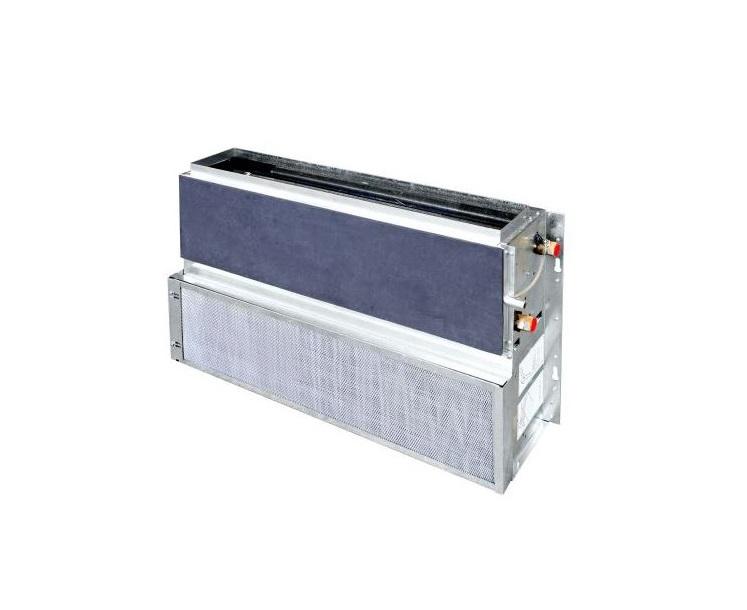

Ceiling fan coil SRFCHC-200 Saran

Saran
Iran

Saran SRFCHC-200 cabinetless ceiling fan coil with its beautiful appearance, durability and long life is one of the most widely used types of fan coils in high-rise buildings.
With Saran Srfcrc cabinetless ceiling fan coil fan, considering the high working pressure of Saran ceiling fan coils, they can be used for buildings up to 20 floors.

After all production, all-fan roof coils without Saran cabinets are degreased and washed with a suitable solution and then tested with a pressure of 200PSI (about 13.5 atmospheres)....
You can also make a price as a seller
Request a price to negotiate and get a better offer

Suppliers

SuppliersExpiration datePrice (Toman)Minimum order (MOQ)CityPhone number
The price is not recorded

Ceiling fan coil SRFCHC-200 Saran

Attributes : Saran's cabinetless fan fan coils are made of copper pipe (three rows) with a diameter of 3.8 inches with aluminum fins (14 blades per inch) with high efficiency of Fin Plate Expanded Tubes.Saran's all-fan coils are manufactured with the most advanced fully automatic machines and have a high level of heat exchange compared to similar coils due to the use of advanced FIN PLATE technology.Also, their copper pipes are mechanically integrated by the Expander device with the plate fins, and any air gap between the fins and the copper pipes is eliminated. (Pipe expansion has a significant effect on increasing the efficiency of heat exchange in coils)Saran cabinetless ceiling fan coils have centrifugal fan with static and dynamic balance and minimum sound produced.One of the most important features of Saran ceiling fan coil is that it has a three-speed single-phase electric motor. These electric motors are equipped with a thermal relay that protects the electric motor against additional electrical loads and the high heat of the coil.Equipped with a three-speed switch to select the right speed of the electric motorThe distillation body and pan of these fan coils are made of galvanized sheet and covered with insulation.It has an antibacterial washable filter with easy accessThe outer body of Saran's ceiling fan coils is covered with kiln-painted, electrostatic paint.

Product Specifications

Aeration (CFM)
200
Maximum cooling power (BTU / hr)
9200
Maximum heating power (BTU / hr)
21800
Sound intensity (dB)
41
Engine power (w)
25
Dimensions (mm)
650x670x190
Number of fans
1
Number of engines
1
Body weight (kg)
24
Inlet / outlet pipe size (inch)
04-Mar
Number of coil rows
3
