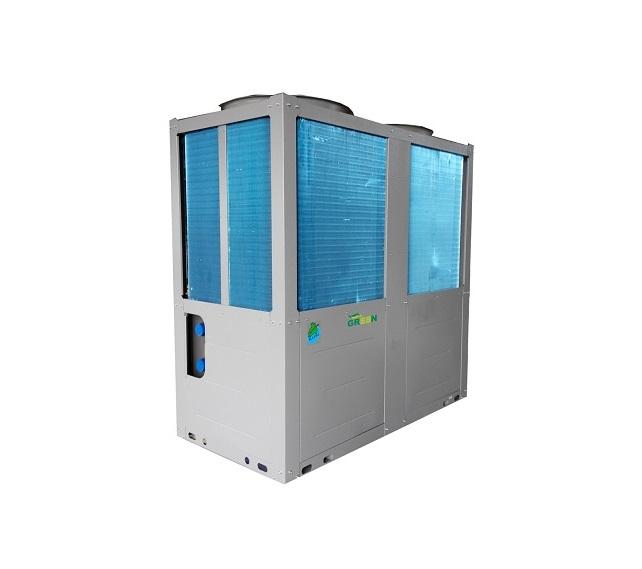

Modular chiller GACCH130P3T1 Green ac

High efficiency Green heat exchanger: In modular chillers, a very thin copper tube with internal fluids is used, which increases the efficiency of the heat exchanger by up to 10% compared to conventional heat exchangers.

Shell & Tube Evaporator: The heating or cooling part of the compression system, evaporator or evaporator, which uses Shell & Tube evaporators in the modular Green compression chillers.

Backup Setup: Once the master device has a problem, you can easily select any of the other devices as the main device to keep the system running. Also, if the non-original device is damaged, the system can continue to operate without interruption.

Existence of two refrigeration circuits in one system: Each chiller has two separate refrigeration circuits, so that if there is a problem for one circuit, the other circuit will continue to function without any problems. Also, if the cooling load is low, a cooling circuit is used, which increases energy efficiency.

Compact design: The Model Green H-Series modular chillers are small in size, so they require less installation space.

Alternative operation: The order of startup and operation of each device is automatically adjusted based on the startup time, which increases the life of the system.

R410a refrigerant: The refrigerant used in Green's modular chillers is R410a gas, which increases the efficiency of the device. Environmental damage is also minimized by using this gas, which is known as environmentally friendly gas.

Connecting 16 devices to each other: Using the modularity of the devices, up to 16 devices can be connected to each other and the total cooling capacity can be increased up to 640 tons of real 2080KW.

Ambient temperature range: 21 to 49 در C in cooling mode and 21 to 30 در C in heating mode

Use of the best equipment: Green Company has used the best and most reputable brands in the world such as Copland, Danfoss and Hailey to increase the quality level of its devices in making Green Modular Chillers.
