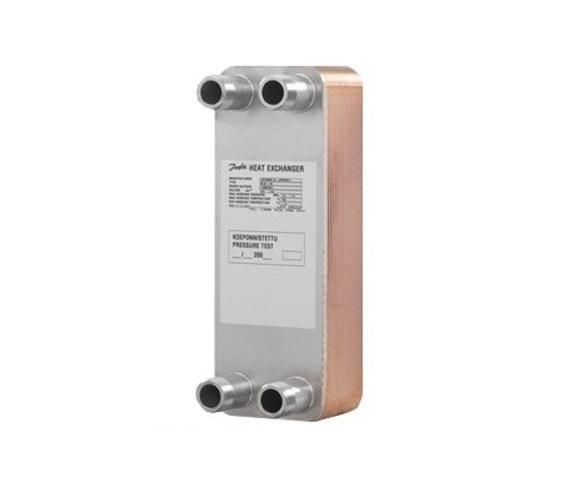

Thermal converter B3-027C-34 Danfoss

Danfoss
Iran

Danfoss plate heat exchanger model B3-027C-34 is one of the most suitable options for use in heat transfer systems. These converters are used as evaporators, condensers, economizers and de-superheaters in chillers and heat pumps and many more. One of the characteristics of Danfoss plate heat exchangers is their high working pressure. The working pressure of this product is 40 bar. Also, these converters have two types of welding and washer, each of which has different features and applications.
You can also make a price as a seller
Request a price to negotiate and get a better offer

Suppliers

SuppliersExpiration datePrice (Toman)Minimum order (MOQ)CityPhone number
The price is not recorded

similar products

Thermal converter B3-027C-34 Danfoss

Attributes :

Extremely small size and light weight
High efficiency due to low temperature difference between the two sides of the converter
High performance pressure
Reduce the occurrence of frost in the system
Performance with minimum pressure and temperature fluctuations

Kcal / Hr
000"

Product Specifications

Maximum operating pressure (bar)
40
Dimensions (mm)
91 * 111 * 311
Material
Stainless Steel 316
Water consumption (Lit / hr) at t = 50 ° C 50
3000
number of pages
34
Boiler inlet and outlet pipe size (in)
1/4 1
Water inlet and outlet pipe size (in)
1
Hot water pressure drop (Kpa)
9
